Week 6 — Maximum likelihood estimation

How do we find the single value the data most support?

The week question

Last week you learned to read the likelihood \(L(\theta)\) as a function that scores every candidate value of a parameter by how well it would have produced the data you actually saw. A likelihood curve ranks values; it does not, by itself, hand you a single answer. This week’s question is the natural next step: of all the values \(\theta\) could take, which one does the data support most? That single value is the maximum likelihood estimate, written \(\hat\theta_{\text{MLE}}\), and the procedure that produces it — find the peak of the likelihood — is one of the most general estimation tools in all of statistics. We will derive it by hand for the running proportion, get an honest standard error from the curvature of the log-likelihood, and then carry the same recipe to a mean and a rate so you can see the recipe is not specific to one problem.

Why this matters

Maximum likelihood is the engine under a huge fraction of the methods you will meet later — confidence intervals next week, the test statistics in week 8, logistic and Poisson regression, and the likelihoods inside Bayesian posteriors in week 12 all lean on it. It matters here for three reasons. First, it is a single, mechanical recipe: write the log-likelihood, differentiate, set the derivative to zero, solve. The same three steps work for a proportion, a mean, a rate, and far beyond. Second, the second derivative — how sharply the log-likelihood bends at its peak — gives you a standard error for free, so the estimate arrives with its own uncertainty attached. Third, maximum likelihood keeps the parameter-versus-estimate discipline of this course in sharp focus: the MLE is a number computed from one sample that estimates a fixed unknown parameter, and the likelihood it maximizes is a function of \(\theta\), never a probability distribution over \(\theta\). Holding that line is the whole point of the week.

Learning goals

By the end of this week you should be able to:

  • State what the maximum likelihood estimate is — the parameter value that maximizes \(L(\theta)\), equivalently \(\ell(\theta) = \log L(\theta)\) — and explain why maximizing the log is equivalent and easier.
  • Derive an MLE by writing the score \(\ell'(\theta)\), setting it to zero, and solving the score equation.
  • Compute the locked proportion MLE \(\hat\theta_{\text{MLE}} = 26/40 = 0.65\) for the reading-fluency study and confirm it is a maximum, not just a stationary point.
  • Read a standard error off the observed information (the curvature of \(\ell\)): here \(\operatorname{SE}(\hat\theta) \approx 1/\sqrt{175.8} \approx 0.0754\), matching the week-3 Wald SE.
  • Transfer the recipe to a Normal mean (MLE is \(\bar x = 8.0\)) and to an exponential rate.
  • Keep the likelihood-is-not-a-probability-over-\(\theta\) distinction explicit, and name what the MLE conditions on (the chosen model) and what it does not deliver (a probability about the fixed \(\theta\)).

Core vocabulary

A compact notation block for the week. These mirror the notation glossary; keep parameter, statistic, estimator, and estimate distinct in both words and symbols.

  • Parameter \(\theta\) — the fixed unknown we want to learn about (the population pass-rate). Parameters are fixed, not random, and never carry a hat themselves.
  • Likelihood \(L(\theta)\) — a function of \(\theta\) given the observed data; it scores candidate parameter values. It is not a probability distribution over \(\theta\) and need not integrate to \(1\).
  • Log-likelihood \(\ell(\theta) = \log L(\theta)\) — the natural log of the likelihood. It has the same maximizer as \(L\) but turns products into sums, so derivatives are tractable.

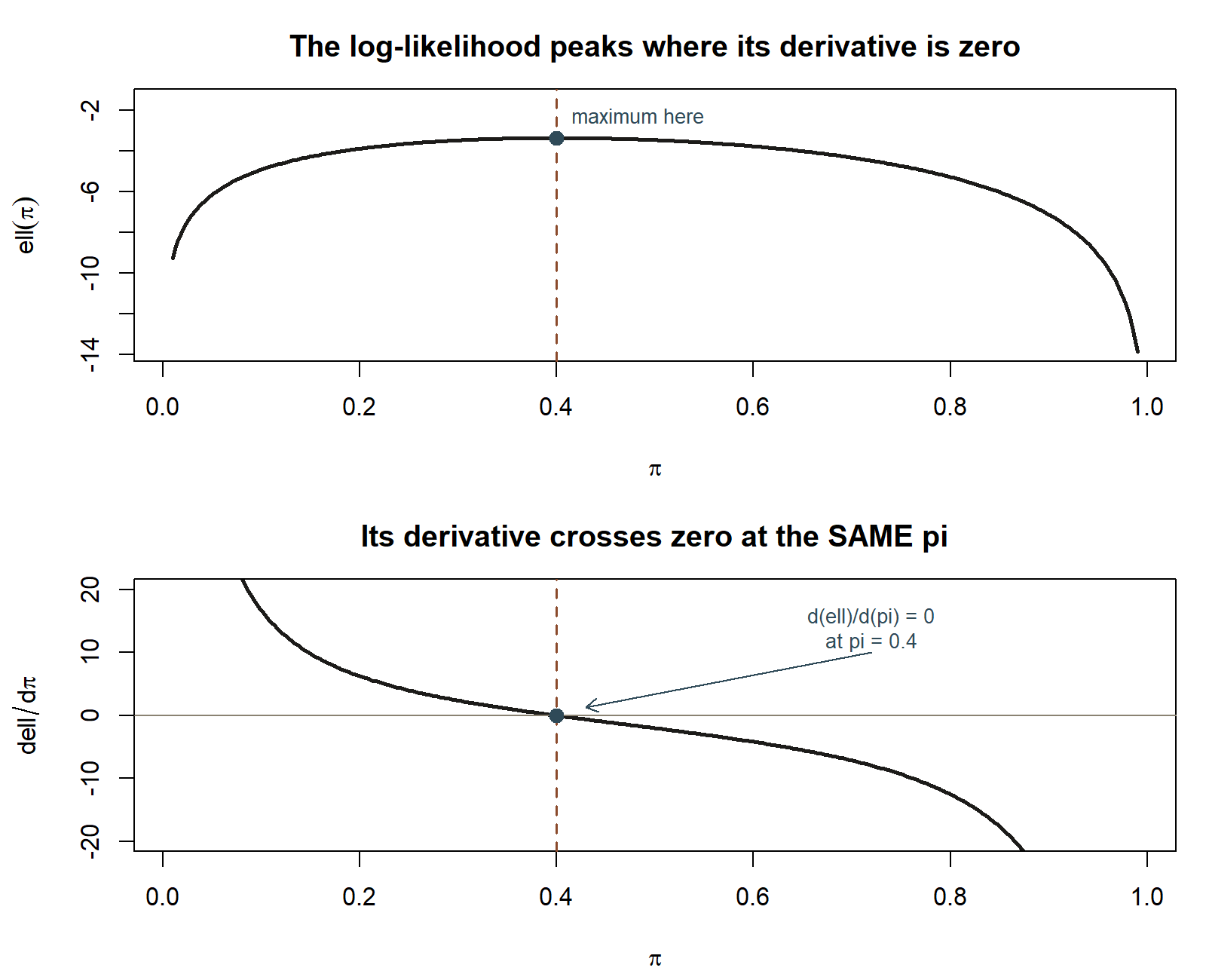

  • Score \(\ell'(\theta) = \dfrac{d}{d\theta}\,\ell(\theta)\) — the slope of the log-likelihood. Setting the score to zero, \(\ell'(\theta) = 0\), is the score equation; its solution is the candidate MLE.
  • Maximum likelihood estimate \(\hat\theta_{\text{MLE}}\) — the value of \(\theta\) that maximizes \(\ell(\theta)\); the parameter value that makes the observed data most probable under the chosen model. As an estimator (a function of the random sample) it has a sampling distribution; as an estimate it is one realized number from one sample.
  • Observed information \(I(\hat\theta) = -\ell''(\hat\theta)\) — minus the second derivative (the curvature) of \(\ell\) at the peak. A sharply peaked log-likelihood means high information and a small standard error.
  • Standard error of the MLE \(\operatorname{SE}(\hat\theta) \approx 1/\sqrt{I(\hat\theta)}\) — the (estimated) SD of the estimator’s sampling distribution, read off the curvature.

Concept development

The idea: maximize the (log-)likelihood

The likelihood ranks parameter values; the MLE picks the top-ranked one. Formally,

\[ \hat\theta_{\text{MLE}} = \arg\max_{\theta} \, L(\theta) = \arg\max_{\theta} \, \ell(\theta). \]

Why the log? Because the natural logarithm is strictly increasing, \(L(\theta)\) and \(\ell(\theta) = \log L(\theta)\) are maximized at exactly the same \(\theta\) — the log moves the height of the peak but not its location. And the log turns a product of probabilities into a sum of log-probabilities, which is far easier to differentiate. For a smooth log-likelihood on the interior of the parameter space, the maximizer satisfies the score equation \(\ell'(\theta) = 0\), and we confirm it is a maximum (not a minimum or saddle) by checking that the second derivative is negative there, \(\ell''(\hat\theta) < 0\).

A caution that is the week’s central trap: the area under \(L(\theta)\) has no meaning, and the height of the peak is not a probability. The MLE is the location of the peak, full stop. The likelihood is a function of \(\theta\), not a density over \(\theta\) — that is convention-risk 4 in the notation glossary.

The proportion: deriving the score equation symbolically

For the reading-fluency study (Strand A), \(X \sim \text{Binomial}(n, \theta)\) with \(n = 40\) trials and \(x = 26\) passes. From week 5 the log-likelihood, up to an additive constant that does not depend on \(\theta\), is

\[ \ell(\theta) = \text{const} + 26\ln\theta + 14\ln(1-\theta), \qquad 0 < \theta < 1. \]

Differentiate with respect to \(\theta\). Using \(\frac{d}{d\theta}\ln\theta = 1/\theta\) and \(\frac{d}{d\theta}\ln(1-\theta) = -1/(1-\theta)\), the score is

\[ \ell'(\theta) = \frac{26}{\theta} - \frac{14}{1-\theta}. \]

The constant differentiated away, which is exactly why dropping it last week was harmless. Set the score to zero and solve:

\[ \begin{aligned} \frac{26}{\theta} - \frac{14}{1-\theta} &= 0 \\[4pt] \frac{26}{\theta} &= \frac{14}{1-\theta} \\[4pt] 26(1-\theta) &= 14\,\theta \\[4pt] 26 &= 26\,\theta + 14\,\theta = 40\,\theta \\[4pt] \hat\theta_{\text{MLE}} &= \frac{26}{40} = 0.65. \end{aligned} \]

So the MLE of the pass-probability is \(\hat\theta_{\text{MLE}} = 0.65\) — and notice it is exactly the sample proportion \(\hat p = x/n\) from weeks 1 and 3. That is not a coincidence: for a binomial proportion the MLE is the sample proportion. The derivation just earns that familiar formula from a general principle rather than asserting it.

Confirm it is a maximum. The second derivative is

\[ \ell''(\theta) = -\frac{26}{\theta^2} - \frac{14}{(1-\theta)^2}, \]

which is negative for every \(\theta\) in \((0,1)\), so \(\ell\) is concave and the stationary point is the unique maximum. Interpreting: among all pass-probabilities, \(\theta = 0.65\) is the single value under which observing \(26\) passes in \(40\) students is most probable. This is a statement about which parameter the data most support under the binomial model — it is not a claim that \(\theta\) “is probably \(0.65\),” because \(\theta\) is a fixed unknown, not a random quantity.

Uncertainty for free: the curvature gives a standard error

A point estimate without a standard error is half an answer. Maximum likelihood supplies the other half from the observed information — the curvature of the log-likelihood at its peak:

\[ I(\hat\theta) = -\ell''(\hat\theta). \]

The intuition is geometric. If \(\ell\) is sharply peaked, nearby \(\theta\) values fit the data much worse, so the data pin \(\theta\) down tightly — high information, small SE. If \(\ell\) is broad and flat, many values fit nearly as well — low information, large SE. The standard error is

\[ \operatorname{SE}(\hat\theta) \approx \frac{1}{\sqrt{I(\hat\theta)}}. \]

For the binomial, plugging \(\hat\theta = \hat p = 0.65\) into \(-\ell''\) simplifies to the compact form

\[ I(\hat\theta) \approx \frac{n}{\hat p(1-\hat p)} = \frac{40}{0.65 \cdot 0.35} = \frac{40}{0.2275} \approx 175.8, \]

so

\[ \operatorname{SE}(\hat\theta) \approx \frac{1}{\sqrt{175.8}} \approx 0.0754. \]

This matches the Wald standard error \(\sqrt{\hat p(1-\hat p)/n} \approx 0.0754\) you computed in week 3 — and that agreement is no accident, since \(\sqrt{\hat p(1-\hat p)/n} = 1/\sqrt{n/[\hat p(1-\hat p)]}\). Interpreting: \(0.0754\) is the estimated SD of the estimator \(\hat\theta\) across hypothetical repeated samples of \(n = 40\), not the SD of any one student’s outcome. It is what is random here — the sampling-to-sampling wobble of the procedure — while the parameter \(\theta\) stays fixed.

Why maximum likelihood is general

Nothing in the recipe — write \(\ell\), differentiate, set to zero, solve, check curvature — used a fact special to the binomial. The same three-line procedure produces the MLE for a Normal mean (the sample mean), a Normal variance, an exponential rate, a Poisson rate, and the coefficients in a regression. What changes from problem to problem is only the model you assume, which fixes the form of \(\ell(\theta)\). That generality is the reason maximum likelihood, not a grab-bag of ad-hoc formulas, organizes the estimation chapter of this course. What stays constant across every application is the conditioning move: the MLE is the best-supported value given the model you chose. Choose a wrong model and you get the best-supported value of a wrong question, so the modeling assumption is never silent — that is convention-risk 14.

Worked examples

Worked example — the reading-fluency study (the recurring slice)

Model and data. Synthetic; seed set (set.seed(35103)). A campus reading-intervention program records whether each of \(n = 40\) students reached the reading-competency threshold; \(x = 26\) passed. We model \(X \sim \text{Binomial}(40, \theta)\), with \(\theta\) the fixed population pass-probability.

Computation. From the derivation above, the score equation \(\frac{26}{\theta} - \frac{14}{1-\theta} = 0\) gives \(26(1-\theta) = 14\theta\), hence \(\hat\theta_{\text{MLE}} = 26/40 = 0.65\). The observed information is \(I(\hat\theta) \approx 40/(0.65 \cdot 0.35) \approx 175.8\), so \(\operatorname{SE}(\hat\theta) \approx 1/\sqrt{175.8} \approx 0.0754\).

You can also find the maximizer numerically, without calculus, by evaluating \(\ell(\theta)\) on a fine grid and taking the largest, or by handing \(\ell\) to an optimizer. The static R below does both and confirms the hand derivation. It is shown as teaching code — it is not executed in these notes.

set.seed(35103)

# Reading-fluency study, Strand A: n = 40 trials, x = 26 passes
n <- 40
x <- 26

# Log-likelihood for theta (drop the binomial coefficient -- constant in theta)
loglik <- function(theta) x * log(theta) + (n - x) * log(1 - theta)

# (1) Grid search: evaluate loglik on a fine grid, take the arg-max
grid     <- seq(0.001, 0.999, by = 0.001)
theta_hat_grid <- grid[which.max(loglik(grid))]
theta_hat_grid       # 0.65

# (2) Optimizer: maximize loglik directly (optimize minimizes, so negate)
opt <- optimize(function(t) -loglik(t), interval = c(0.001, 0.999))
opt$minimum          # 0.65  -- same answer

# (3) SE from the observed information  I(theta_hat) = n / [p_hat (1 - p_hat)]
p_hat <- x / n                       # 0.65
info  <- n / (p_hat * (1 - p_hat))   # 175.8
se    <- 1 / sqrt(info)              # 0.0754
c(theta_hat = p_hat, info = info, se = se)
#  theta_hat       info         se
#       0.65      175.8     0.0754

Interpretation. All three routes agree: the data most support \(\theta = 0.65\), with an estimated standard error of \(0.0754\). The grid search and the optimizer matter because in harder models there is no closed-form score solution and the MLE must be found numerically — the binomial is the easy case where the calculus and the computer land in the same place. Name the pieces: \(\theta\) is the fixed parameter; \(\hat\theta = 0.65\) is one estimate from one observed sample; \(0.0754\) describes how that estimator would vary across the random resampling of \(40\) students; and the binomial model with independent, identically distributed trials is the assumption the whole computation conditions on. The MLE does not say “there is a 65% chance \(\theta = 0.65\)” — that would read the likelihood as a probability over \(\theta\), which it is not.

Worked example — transfer: MLE of a Normal mean (and an exponential rate)

Normal mean (Strand B). Now switch outcomes. The reading-gain cohort (Strand B) has \(n = 36\) scores with sample mean \(\bar x = 8.0\) and sample SD \(s = 6.0\) — a different measured outcome from the pass/not-pass proportion, so do not equate the two strands. Model the scores as \(X_1, \dots, X_n \sim \text{Normal}(\mu, \sigma^2)\) i.i.d., and find the MLE of \(\mu\) (treat \(\sigma\) as known for the mean’s derivation). Dropping constants, the log-likelihood in \(\mu\) is

\[ \ell(\mu) = \text{const} - \frac{1}{2\sigma^2}\sum_{i=1}^{n}(x_i - \mu)^2. \]

Differentiate and set to zero:

\[ \begin{aligned} \ell'(\mu) &= \frac{1}{\sigma^2}\sum_{i=1}^{n}(x_i - \mu) = 0 \\[4pt] \sum_{i=1}^{n} x_i - n\mu &= 0 \\[4pt] \hat\mu_{\text{MLE}} &= \frac{1}{n}\sum_{i=1}^{n} x_i = \bar x = 8.0. \end{aligned} \]

So the MLE of a Normal mean is just the sample mean, \(\hat\mu_{\text{MLE}} = \bar x = 8.0\). The same “write \(\ell\), take the score, solve” recipe that produced \(0.65\) for the proportion produces \(8.0\) here — the only thing that changed was the assumed model. Interpreting: \(8.0\) is the gain-score value the data most support under the Normal model; it is an estimate of the fixed mean \(\mu\), and the spread of \(\bar X\) across random samples (its standard error, \(s/\sqrt n = 6/6 = 1.0\) from week 3) is a separate question we formalize as an interval next week.

Exponential rate. As a second transfer, suppose waiting times until a student first reaches the threshold are modeled as \(X_1, \dots, X_n \sim \text{Exponential}(\lambda)\) i.i.d., with rate parameter \(\lambda > 0\) and density \(f(x \mid \lambda) = \lambda e^{-\lambda x}\). The log-likelihood is

\[ \ell(\lambda) = n\ln\lambda - \lambda\sum_{i=1}^{n} x_i, \qquad \ell'(\lambda) = \frac{n}{\lambda} - \sum_{i=1}^{n} x_i = 0 \;\Rightarrow\; \hat\lambda_{\text{MLE}} = \frac{n}{\sum_{i=1}^{n} x_i} = \frac{1}{\bar x}. \]

The MLE of an exponential rate is the reciprocal of the sample mean — sensible, since a larger average waiting time means a slower (smaller) rate. (Synthetic illustration: if such times averaged \(\bar x = 4\) weeks, then \(\hat\lambda_{\text{MLE}} = 1/4 = 0.25\) per week; this is a notional transfer figure, not a locked study number.) The lesson across all three examples is the same: one general procedure, three different models, three answers — and in every case the answer is the value the data most support given that model.

A common mistake

The week’s trap is reading the likelihood, or the MLE, as a probability statement about \(\theta\) (convention-risk 4, and the companion risk 15 below). Three specific slips to avoid:

  • “The likelihood says \(\theta\) is probably \(0.65\).” No. \(L(\theta)\) is a function of \(\theta\) given the data; it is not a density over \(\theta\), it need not integrate to \(1\), and the area under it means nothing. The MLE is the location of the peak, not a probability. A genuine probability statement about \(\theta\) requires a prior and a posterior — that is the Bayesian machinery of week 12, not maximum likelihood.
  • “\(\hat\theta_{\text{MLE}} = 0.65\), so \(\theta = 0.65\).” No. \(\hat\theta_{\text{MLE}}\) is an estimate — a single number from a single sample, an instance of a random estimator with standard error \(0.0754\). The fixed parameter \(\theta\) remains unknown; the estimate is our best-supported guess, not the truth.
  • Confusing the likelihood \(L\) with a loss. In this course \(L(\theta)\) always means the likelihood; a decision loss is written \(\operatorname{Loss}(\theta, a)\), never \(L\) (convention-risk 15). When week 9 introduces decisions, keep the symbols apart.

A fourth, quieter slip is leaving the model assumption silent. The MLE is only “the best-supported value” given the binomial (or Normal, or exponential) model and the independence assumption. Name the model every time; an MLE under the wrong model is the right answer to the wrong question (convention-risk 14).

Low-stakes self-checks (ungraded)

These are for self-study only — ungraded, no submission.

  1. Write the binomial log-likelihood for \(n = 40\), \(x = 26\) and differentiate it to recover the score \(\frac{26}{\theta} - \frac{14}{1-\theta}\). Solve the score equation and confirm \(\hat\theta = 0.65\).
  2. Check that \(\ell''(\theta) = -26/\theta^2 - 14/(1-\theta)^2 < 0\) for all \(\theta \in (0,1)\). In one sentence, what does the sign of the second derivative tell you, and what does its magnitude at the peak tell you?
  3. Using \(I(\hat\theta) \approx n/[\hat p(1-\hat p)] = 175.8\), reproduce \(\operatorname{SE}(\hat\theta) \approx 0.0754\), and say in words why it agrees with the week-3 Wald SE.
  4. For a Normal sample, re-derive that \(\hat\mu_{\text{MLE}} = \bar x\) from the score equation. Then state what would change in the derivation, and what would not, if you instead had \(n = 36\), \(\bar x = 8.0\) values.
  5. For an exponential sample, show \(\hat\lambda_{\text{MLE}} = 1/\bar x\). Self-check the direction: does a larger mean waiting time give a larger or smaller rate, and does that match intuition?
  6. A classmate says “the MLE is \(0.65\), so there’s a 65% chance the true pass-rate is \(0.65\).” Identify the two distinct mistakes in that sentence using this week’s vocabulary.

Reading and source pointer

This week is grounded in MIT OCW 18.05, Introduction to Probability and Statistics (Spring 2022) — the reading on maximum likelihood estimation, which develops the MLE through the (log-)likelihood and the score equation, and connects the curvature of the log-likelihood to the precision of the estimate. It builds directly on last week’s likelihood reading. These notes are the course’s own synthesis, grounded in but not copied from the sources. For hands-on practice drawing and maximizing likelihood curves in R, work the companion Lab 6 — Likelihood and MLE curves.

Formula-verification status

verified: false. The formulas and every numeric value on this page are drafted, synthetic, and not independently checked. The course math/statistics gate is BLOCKED. The load-bearing items here — the binomial score \(\ell'(\theta) = \frac{26}{\theta} - \frac{14}{1-\theta}\) and its solution \(\hat\theta_{\text{MLE}} = 26/40 = 0.65\); the second derivative \(\ell''(\theta) = -26/\theta^2 - 14/(1-\theta)^2\); the observed information \(I(\hat\theta) \approx n/[\hat p(1-\hat p)] = 40/0.2275 \approx 175.8\) and the resulting \(\operatorname{SE}(\hat\theta) \approx 1/\sqrt{175.8} \approx 0.0754\); the Normal-mean MLE \(\hat\mu_{\text{MLE}} = \bar x = 8.0\); and the exponential-rate MLE \(\hat\lambda_{\text{MLE}} = 1/\bar x\) — are provisional and cross-checked only for internal and narrative consistency. All data are synthetic (set.seed(35103)) and represent the reading-fluency study, not real student records. Do not treat any value here as a confirmed reference until the human/source sign-off in _state/notation_ledger.md §5 is complete.

Public vs. graded

These notes, the examples, and the practice here are public and ungraded — study material only. No graded prompts, answer keys, rubrics, point values, or due dates appear on this site. Graded inference checkpoints, quizzes, homework, inference labs, the midterm, the project, and the final live in Blackboard (the LMS), which is authoritative for due dates, submissions, and grades. If this page and Blackboard ever disagree, follow Blackboard.

Looking ahead

Next week we surround the MLE with an interval rather than reporting a single point. Week 7 builds the 95% confidence interval for \(\theta\), \((0.502, 0.798)\), and for the mean, \((5.97, 10.03)\), directly on this week’s estimate and standard error — and it asks the question that trips up almost everyone the first time: what does “95% confident” actually mean? (Spoiler: it is a property of the procedure’s long-run coverage, not a probability about the fixed \(\theta\).) Week 7 also marks the midterm (Friday, October 9, in class), which covers sampling distributions through confidence intervals.
