# Synthetic commute times C ~ Normal(mu = 22, sd = 5). Watch the running mean settle to 22 (LLN).
set.seed(35003)
n <- 5000
C <- rnorm(n, mean = 22, sd = 5) # NOTE: sd = 5 is a standard deviation, NOT a variance
run_mean <- cumsum(C) / seq_len(n) # cumulative average after 1, 2, ..., n mornings
plot(seq_len(n), run_mean, type = "l",
xlab = "number of mornings (n)", ylab = "running average commute (min)",
main = "Law of large numbers: running mean -> 22")
abline(h = 22, lty = 2) # the true mean mu the average is converging to
run_mean[c(10, 100, 1000, 5000)] # the average at a few sample sizes: drifting toward 22Week 13 — Sums, simulation & limit behavior
Seeing the law of large numbers and the central limit theorem by simulation
This is a software week. The whole term we have derived probabilities by hand — counting outcomes, integrating densities, applying Bayes’ rule. This week we add the other half of the course’s promise: simulation. We will not prove the week’s two big results; we will state them and then watch them happen by generating synthetic data in R and counting. The page is built on the software_note_lab anatomy — a concept note, a practiced simulation sequence, a reproducibility convention, a debugging note, and an honest record of any AI help — and it hands off to the companion Lab 13 where you run the code yourself.
Concept note
Two questions sit underneath almost everything you do with data. If I average many noisy measurements, does the average settle down to the truth? And if it does, what does the leftover wobble look like? This week names the two theorems that answer them — the law of large numbers (LLN) and the central limit theorem (CLT) — and uses simulation to make them visible. Before either, we need one small piece of algebra about adding random variables.
Adding random variables, and the variance of a sum
Expectation adds with no fine print. For any random variables \(X\) and \(Y\),
\[ E[X + Y] \;=\; E[X] + E[Y], \]
whether or not \(X\) and \(Y\) are independent. Variance is the careful one. The general rule carries a cross-term:
\[ \operatorname{Var}(X + Y) \;=\; \operatorname{Var}(X) + \operatorname{Var}(Y) + 2\,\operatorname{Cov}(X, Y). \]
The covariance \(\operatorname{Cov}(X, Y)\) is exactly the joint-dependence quantity from Week 12 — it measures whether \(X\) and \(Y\) move together. When \(X\) and \(Y\) are independent (or merely uncorrelated) the covariance is \(0\), the cross-term vanishes, and variance becomes additive:
\[ \operatorname{Var}(X + Y) \;=\; \operatorname{Var}(X) + \operatorname{Var}(Y) \qquad (X \perp Y). \]
That special case is the engine of the whole week. Stack up \(n\) independent and identically distributed (iid) copies \(X_1, X_2, \dots, X_n\), each with mean \(\mu\) and standard deviation \(\sigma\), and look at their sum and their average. For the sum \(S_n = X_1 + \cdots + X_n\),
\[ E[S_n] \;=\; n\mu, \qquad \operatorname{Var}(S_n) \;=\; n\sigma^2, \]
and for the sample mean \(\bar X_n = S_n / n\),
\[ E[\bar X_n] \;=\; \mu, \qquad \operatorname{Var}(\bar X_n) \;=\; \frac{\sigma^2}{n}, \qquad \operatorname{sd}(\bar X_n) \;=\; \frac{\sigma}{\sqrt n}. \]
Read that last line slowly, because it is the seed of both theorems. The average is centered on the truth \(\mu\) for every \(n\), and its spread shrinks like \(\sigma/\sqrt n\) as \(n\) grows. The mean stays put; the wobble around it gets smaller.
The law of large numbers — the average settles
The LLN turns “the spread shrinks” into a promise about the average itself. As the sample size grows, the sample mean of iid draws converges to the true expectation:
\[ \bar X_n \;=\; \frac{1}{n}\sum_{i=1}^{n} X_i \;\longrightarrow\; \mu \;=\; E[X] \qquad \text{as } n \to \infty. \]
In words: pile up enough independent observations and their average gets and stays close to the value you would have computed if you knew the distribution exactly. This is the formal license behind a habit you already have — estimating a probability or a mean by running many trials and averaging. Every Monte Carlo estimate in this course (the lab-2 counting, the lab-5 posterior) is the LLN cashing out: the long-run proportion converges to the true probability because a proportion is just the average of \(0/1\) indicators. We state the LLN; we do not prove it. Its plausibility comes straight from the previous section — if \(\operatorname{Var}(\bar X_n) = \sigma^2/n \to 0\), the average has less and less room to stray from \(\mu\).
The central limit theorem — the wobble is a bell
The LLN says the average lands on \(\mu\). The CLT describes the shape of how it scatters along the way, and the answer is remarkable: almost regardless of the shape of the original distribution, the standardized sum of many iid draws looks Normal. Precisely,
\[ Z_n \;=\; \frac{S_n - n\mu}{\sigma\sqrt n} \;=\; \frac{\bar X_n - \mu}{\sigma / \sqrt n} \;\longrightarrow\; \operatorname{Normal}(0, 1) \qquad \text{as } n \to \infty. \]
Undo the standardizing and the same statement says the sample mean of \(n\) iid draws is approximately Normal, centered at \(\mu\) with standard deviation \(\sigma/\sqrt n\):
\[ \bar X_n \;\approx\; \operatorname{Normal}\!\left(\mu, \; \frac{\sigma}{\sqrt n}\right) \qquad \text{for large } n. \]
This is why the Normal distribution is everywhere: anything built by adding up many small independent contributions — measurement error, total wait across many stops, an average of many quiz scores — tends toward a bell curve, even when each contribution is not itself Normal. We state the CLT; we do not prove it. The point of the week is that you can see both results on screen in a few lines of R, without taking a limit by hand.
A convenient feature of this week’s recurring case: when the draws are already Normal, the approximation is exact. If \(C \sim \operatorname{Normal}(22, 5)\), then for every \(n\) the average of \(n\) iid commutes is exactly \(\bar C_n \sim \operatorname{Normal}(22, 5/\sqrt n)\). That makes the commute the perfect first thing to simulate — we know the exact target to compare against — and then we will switch to a decidedly non-Normal source to show the CLT bending it into a bell anyway.
Setup and practice sequence
All data below are synthetic; seed set (set.seed(35003)). The R chunks are shown for study, written in base R, and not executed on this site (#| eval: false) — you run them yourself in the companion lab. Work the sequence in order; each step builds on the last.
The recurring world: Maya’s morning commute time is \(C \sim \operatorname{Normal}(\mu = 22, \sigma = 5)\) minutes, the same model from Week 11. We will (1) watch one running average settle to \(22\) — the LLN; (2) build the sampling distribution of \(\bar C_n\) and see it is the bell the CLT promises; and (3) repeat the CLT step on a non-Normal source — a sum of quiz scores — to show the bell appears even when the ingredients are not Normal.

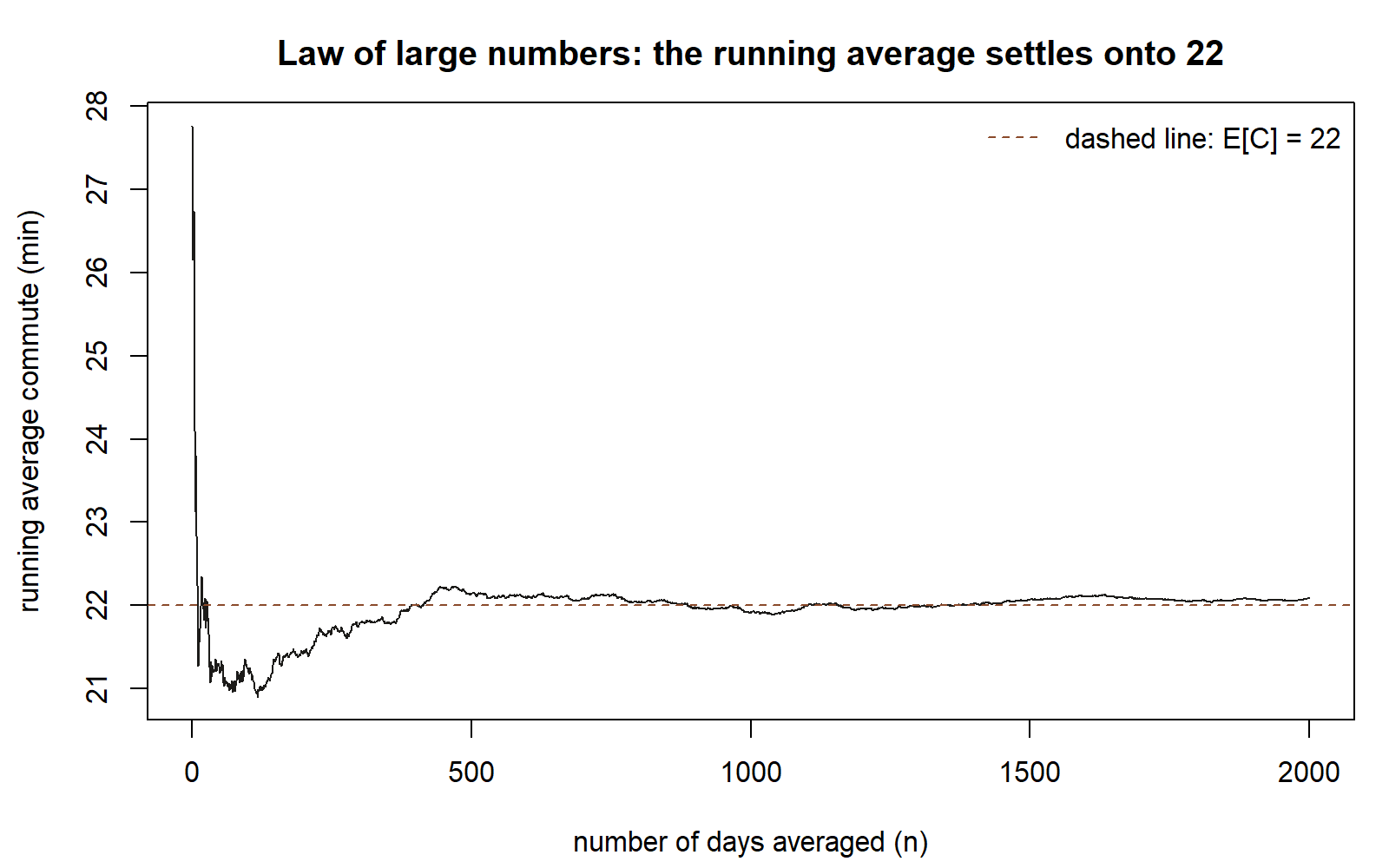

1. Watch one running average settle (the LLN). Draw a long stream of commute times and plot the cumulative average after \(1, 2, 3, \dots\) mornings. Early on the average jumps around; as \(n\) grows it hugs the line \(\mu = 22\).
What you are meant to see: the line is ragged for small \(n\) and flattens onto the dashed \(\mu = 22\) line as \(n\) grows. That flattening is the LLN, and the rate it tightens is the \(\sigma/\sqrt n\) shrinkage from the concept note.
2. Build the sampling distribution of the mean (the CLT). Now repeat the experiment many times. Take \(n = 30\) commutes, average them to get one \(\bar C_{30}\), and do that for many independent weeks-worth of mornings. Histogram the resulting averages.
# Many independent sample means of n = 30 commutes each. The histogram should look Normal (CLT),
# centered at 22 with sd = 5/sqrt(30).
set.seed(35003)
reps <- 10000 # number of independent sample means to form
n <- 30 # commutes averaged per sample mean
means <- replicate(reps, mean(rnorm(n, mean = 22, sd = 5)))
hist(means, breaks = 40, freq = FALSE,
xlab = "sample mean of 30 commutes (min)",
main = "CLT: distribution of the sample mean")
# overlay the Normal the CLT predicts: center 22, sd 5/sqrt(30)
curve(dnorm(x, mean = 22, sd = 5 / sqrt(30)), add = TRUE, lwd = 2)
c(observed_mean = mean(means), # should be ~ 22
observed_sd = sd(means), # should be ~ 5/sqrt(30) ~ 0.913
predicted_sd = 5 / sqrt(30))What you are meant to see: a tidy bell sitting on top of the overlaid Normal curve, its center near \(22\) and its spread near \(5/\sqrt{30} \approx 0.913\). Because the source was already Normal, the match is essentially exact here — a clean baseline before we stress-test the CLT next.
3. Stress-test the CLT on a non-Normal sum (a sum of quiz scores). Here is the surprising part. Take a clearly non-Normal ingredient — a single true/false quiz score, which is binomial, not a bell — and look at the sum across several quizzes. The CLT says the total will drift toward Normal as we add more.
# Each quiz score X ~ Binomial(10, 0.5) (mean 5, sd ~ 1.58), which is NOT Normal on its own.
# Sum scores across k quizzes and watch the total's distribution turn into a bell as k grows (CLT).
set.seed(35003)
reps <- 10000
draw_total <- function(k) sum(rbinom(k, size = 10, prob = 0.5)) # total over k quizzes
par(mfrow = c(1, 3)) # compare k = 1, 4, 20 side by side
for (k in c(1, 4, 20)) {
totals <- replicate(reps, draw_total(k))
hist(totals, breaks = 30, freq = FALSE,
xlab = paste("sum of", k, "quiz score(s)"),
main = paste("k =", k))
curve(dnorm(x, mean = 5 * k, sd = sqrt(2.5 * k)), add = TRUE, lwd = 2) # CLT target
}
par(mfrow = c(1, 1))What you are meant to see: at \(k = 1\) the histogram is the chunky, slightly blocky binomial; by \(k = 4\) it is already bell-ish; by \(k = 20\) it is a clean Normal hugging the overlaid curve with mean \(5k\) and standard deviation \(\sqrt{2.5k}\) (using the quiz’s \(\mu = 5\), \(\sigma^2 = 2.5\) from Week 8). The ingredient never changed — the sum is what goes Normal. That is the CLT in one picture.
Two worked reads of the output
Worked read — the recurring commuter’s slice. In step 2 the prediction is fixed in advance: \(\bar C_{30} \approx \operatorname{Normal}(22,\, 5/\sqrt{30})\), so
\[ \operatorname{sd}(\bar C_{30}) \;=\; \frac{5}{\sqrt{30}} \;\approx\; \frac{5}{5.477} \;\approx\; 0.913 \text{ minutes.} \]
So averaging just \(30\) mornings cuts the day-to-day spread from \(\sigma = 5\) minutes down to about \(0.91\) minutes — a roughly five-fold tightening, exactly the \(\sqrt{30} \approx 5.48\) factor the formula predicts. The simulation’s reported observed_sd should land right on that \(0.913\); if it does, the code and the theory agree, which is the whole point of running it.
Transfer read — sums of quiz scores. In step 3, one quiz has \(\mu = 5\) and \(\sigma^2 = 2.5\) (the Week-8 binomial numbers). Because the \(k\) quizzes are independent, expectation and variance both add:
\[ E\!\left[\sum_{i=1}^{k} X_i\right] = 5k, \qquad \operatorname{Var}\!\left(\sum_{i=1}^{k} X_i\right) = 2.5k, \qquad \operatorname{sd}\!\left(\sum_{i=1}^{k} X_i\right) = \sqrt{2.5k}. \]
For \(k = 20\) that is a center of \(5(20) = 100\) and a standard deviation of \(\sqrt{2.5 \cdot 20} =
\sqrt{50} \approx 7.07\) — the very mean and sd fed to the overlaid dnorm curve. The histogram matching that curve is the CLT making a Normal out of a stack of non-Normal pieces.
Reproducible-file convention
A simulation result that nobody else can reproduce is an anecdote, not evidence. The convention for every piece of code on this page and in the lab is small and strict.
- One
.qmdper analysis. Keep the narrative, the code, and the output in a single Quarto document so the reasoning and the computation never drift apart. You knit the same file to share a result. - Seed at the top, always. Put
set.seed(35003)before the first random draw in any chunk that uses randomness. The seed makes the pseudo-random stream deterministic: re-knit the file and you get the identical histogram and the identical reported numbers. Without it, every run differs and “I got \(0.913\)” becomes unverifiable. (We use the same course seed, \(35003\), everywhere so results line up across the term.) - End with
sessionInfo(). Close the document with a chunk that records your R version and loaded package versions, so a reader can tell which environment produced the numbers.
# Record the environment at the end of every reproducible analysis file.
sessionInfo()Together — one file, a fixed seed, and a recorded session — these three habits mean another person (or future-you) can re-run the document and get exactly your figures. That is what “reproducible” means in this course, and it is the standard the Week-14 project will be held to.

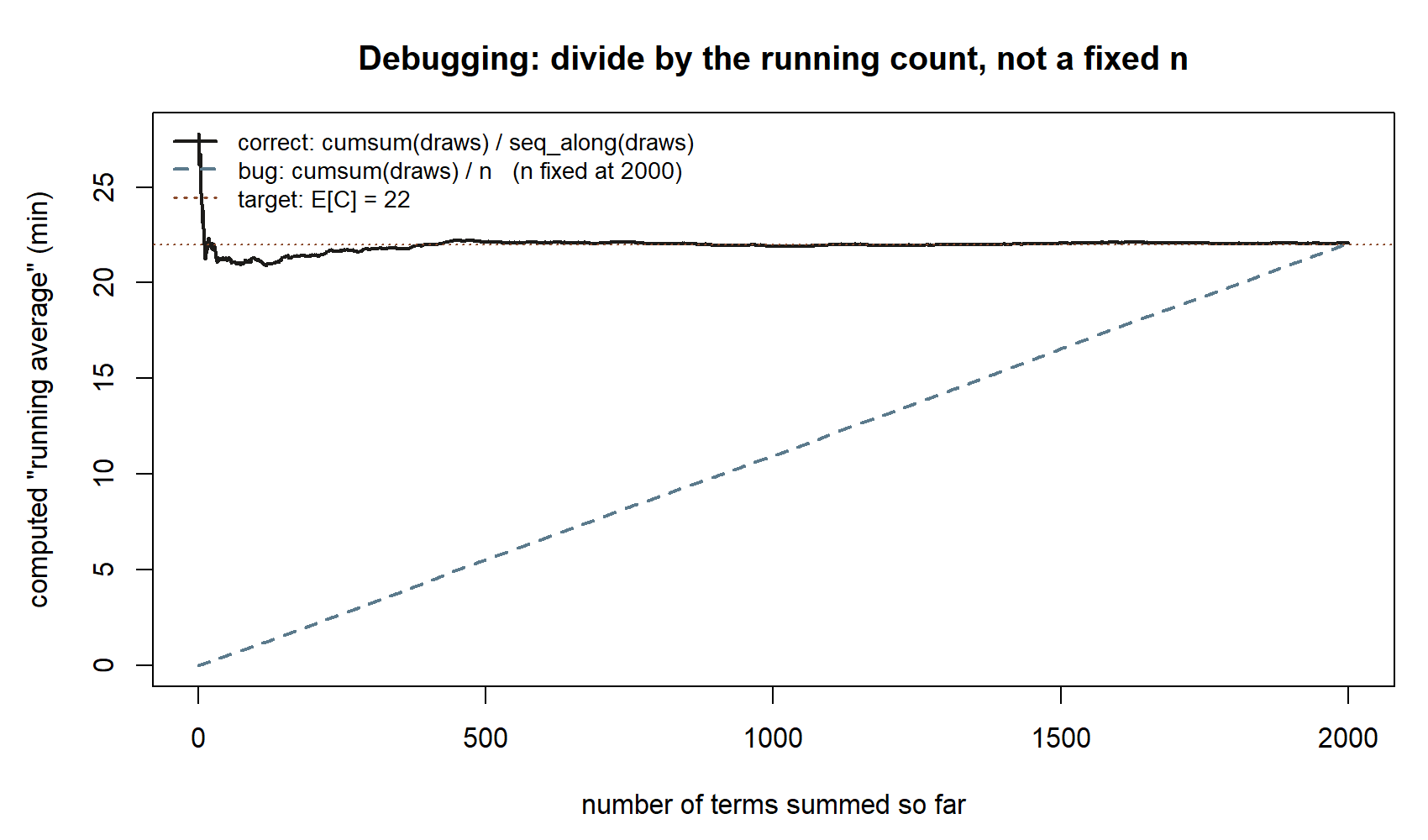

Debugging
Two snags account for most “my simulation looks wrong” moments this week. Both are quiet — the code runs without an error, it just gives the wrong thing — so they are worth recognizing on sight.
- Forgetting
set.seed()→ non-reproducible output. If you omit the seed (or place it after the random draw, which is the same as omitting it), every knit produces a different histogram and different reported numbers. The code is not broken, but the result cannot be checked against anyone else’s. Fix: putset.seed(35003)as the first line that runs before anyrnorm/rbinom/replicate. If you want to confirm a result is stable rather than a seed artifact, deliberately try a couple of different seeds and confirm the picture and the summary numbers barely move — for a large simulation they should not. rnormtakes a standard deviation, not a variance. This is the single most common numeric bug of the week, and it ties straight back to the course’s notation. In R,rnorm(n, mean = 22, sd = 5)expects the third argument to be the standard deviation \(\sigma = 5\). If you instead pass the variance \(\sigma^2 = 25\), writingrnorm(n, mean = 22, sd = 25), you have silently quintupled the spread — your “commute times” now scatter by \(25\) minutes, your running average settles much more slowly, and your CLT histogram is five times too wide. Nothing errors; the numbers are just wrong. Fix: read everysd =argument as “standard deviation,” and sanity-check against the prediction — if step 2 reports anobserved_sdnear \(4.6\) instead of \(0.913\), you have fed it a variance. (The same trap lurks indnormandpnorm, which also takesd, never a variance.)
AI Use Note
If you use an AI assistant on the simulation work, record it briefly and honestly — the Verification column is the one that matters, because an AI can produce R that runs cleanly and still computes the wrong quantity. (This table is an example of the format, not an endorsement of any tool; disclose actual use.)
| Tool | Purpose | Verification |
|---|---|---|
| AI chat assistant | Explain why replicate() returns a vector of sample means rather than one number |
Re-read R help ?replicate; confirmed the length equals reps by checking length(means) |
| AI chat assistant | Suggest base-R syntax to overlay a Normal curve on a histogram | Checked the overlaid dnorm used \(\mu\) and \(\sigma/\sqrt n\), not \(\sigma\); confirmed observed_sd matched \(5/\sqrt{30}\approx 0.913\) |
| AI code helper | Draft the cumulative-average line for the LLN plot | Verified cumsum(C)/seq_len(n) equals a manual average at \(n=10\) by hand before trusting the plot |
The standing rule: any number an AI helps produce must be checked against a hand calculation or the theory from the notes before you rely on it. Disclose AI use on graded work as Blackboard directs.
Reading and source pointer
This week is grounded in Grinstead & Snell (GNU FDL, free online): Chapter 7 — Sums of Random Variables for adding random variables and the variance-of-a-sum rule, Chapter 8 — Law of Large Numbers for the LLN statement, and Chapter 9 — Central Limit Theorem for the CLT statement. The simulation-as-evidence emphasis — watching a sampling distribution form on screen — echoes the computational strand in MIT OCW 18.05 (CC BY-NC-SA 4.0). These notes are the course’s own synthesis, grounded in but not copied from the sources. The commute model, the quiz-sum example, the R code, and all numbers are original to this course; data are synthetic with the seed set to \(35003\). We state the LLN and CLT here and do not prove them; the proofs live in the source chapters for the curious.
Public vs. graded
These notes, the examples, and the practice here are public and ungraded — study material only. No graded prompts, answer keys, rubrics, point values, or due dates appear on this site. Graded checkpoints, quizzes, homework, labs, the midterm, the project, and the final live in Blackboard (the LMS), which is authoritative for due dates, submissions, and grades. If this page and Blackboard ever disagree, follow Blackboard.
Portfolio connection
The pattern you practiced this week — define a synthetic model, fix a seed, simulate many trials, and compare the simulated summary to a theoretical prediction — is exactly the engine of the Week-14 probability-modeling project. There the modeling question is “how often does Maya have \(\ge 2\) late days in a \(5\)-day week?”, and the workflow is the same three moves you just ran: state the model, simulate it reproducibly, and check the Monte Carlo estimate against a by-hand probability. The LLN is your license to trust the estimate when the number of trials is large; the reproducible-file convention (one .qmd, a set seed, a recorded session) is the standard the project’s deliverable will be expected to meet. Treat this week’s three chunks as the reusable skeleton you will adapt in Week 14.
