Week 12 — Joint distributions & dependence

Marginal, conditional, covariance, and correlation

Mathematical goal

By the end of this week you should be able to take two random variables that live on the same morning — not one at a time, but together — and read four linked objects off a single joint distribution: the joint pmf, the two marginals, a conditional distribution, and the two summaries of how the variables move together, covariance and correlation.

The targets for the week are these statements, which we build and then use. For discrete \(X\) and \(Y\) the joint pmf assigns probability to each pair, the marginals sum out one variable, and a conditional renormalizes a slice:

\[ p(x,y) \;=\; P(X = x,\; Y = y), \qquad p_X(x) \;=\; \sum_y p(x,y), \qquad p_{Y\mid X}(y \mid x) \;=\; \frac{p(x,y)}{p_X(x)}\quad (p_X(x) > 0). \]

The covariance measures how \(X\) and \(Y\) vary together, with the computational identity we will lean on:

\[ \operatorname{Cov}(X,Y) \;=\; E\!\big[(X - E[X])(Y - E[Y])\big] \;=\; E[XY] - E[X]\,E[Y]. \]

The correlation rescales covariance by the two standard deviations into a unit-free number trapped in \([-1,1]\):

\[ \rho \;=\; \rho_{X,Y} \;=\; \frac{\operatorname{Cov}(X,Y)}{\sigma_X\,\sigma_Y}, \qquad -1 \;\le\; \rho \;\le\; 1 . \]

You should be able to: build marginals and a conditional from a joint table, compute \(E[XY]\) from the table, get covariance from the identity above, standardize it into \(\rho\), and — the conceptual headline — explain why independence forces \(\operatorname{Cov}=0\) but a zero covariance does not force independence.

The week question

Maya’s morning has more than one uncertain quantity at a time — does it rain, and is she late? When two random variables share the same experiment, how do we describe them together, and how do we put a single number on whether they move with or against each other?

Weeks 6–11 followed one random variable at a time: the quiz score \(X\), the arrival count \(N\), the wait \(T\). But the interesting questions in Maya’s world are about pairs. Back in weeks 3–4 we found that “rain” and “on time” were not independent — knowing it rained changed the chance of being on time. This week gives that informal “not independent” a quantitative spine: a joint table that holds both variables, and a number, \(\rho\), that reports the direction and strength of their linear association.

Notation

Symbol	Meaning
\(X, Y\)	two discrete random variables on the same experiment
\(p(x,y)\)	joint pmf, \(p(x,y) = P(X = x,\, Y = y)\)
\(p_X(x)\), \(p_Y(y)\)	marginal pmfs, found by summing the joint over the other variable
\(p_{Y\mid X}(y\mid x)\)	conditional pmf of \(Y\) given \(X = x\), equal to \(p(x,y)/p_X(x)\)
\(E[XY]\)	expectation of the product, \(\sum_x \sum_y x\,y\,p(x,y)\)
\(\operatorname{Cov}(X,Y)\)	covariance, \(E[XY] - E[X]E[Y]\); same units as \(X\) times units of \(Y\)
\(\sigma_X, \sigma_Y\)	standard deviations of \(X\) and \(Y\) (with \(\sigma_X^2 = \operatorname{Var}(X)\))
\(\rho\), \(\rho_{X,Y}\)	correlation, \(\operatorname{Cov}(X,Y)/(\sigma_X \sigma_Y)\), always in \([-1,1]\)
\(X \perp Y\)	\(X\) and \(Y\) independent: \(p(x,y) = p_X(x)\,p_Y(y)\) for every pair

Conceptual setup

The joint table holds everything

For two discrete variables, the entire joint distribution fits in a rectangular table: one row per value of \(X\), one column per value of \(Y\), and the joint probability \(p(x,y)\) in each cell. Two requirements make it a legitimate distribution — every cell is non-negative, and the cells sum to \(1\):

\[ p(x,y) \ge 0 \quad\text{for all pairs}, \qquad \sum_x \sum_y p(x,y) \;=\; 1 . \]

Everything else this week is extracted from that table by summing or rescaling. Nothing new needs to be stored.

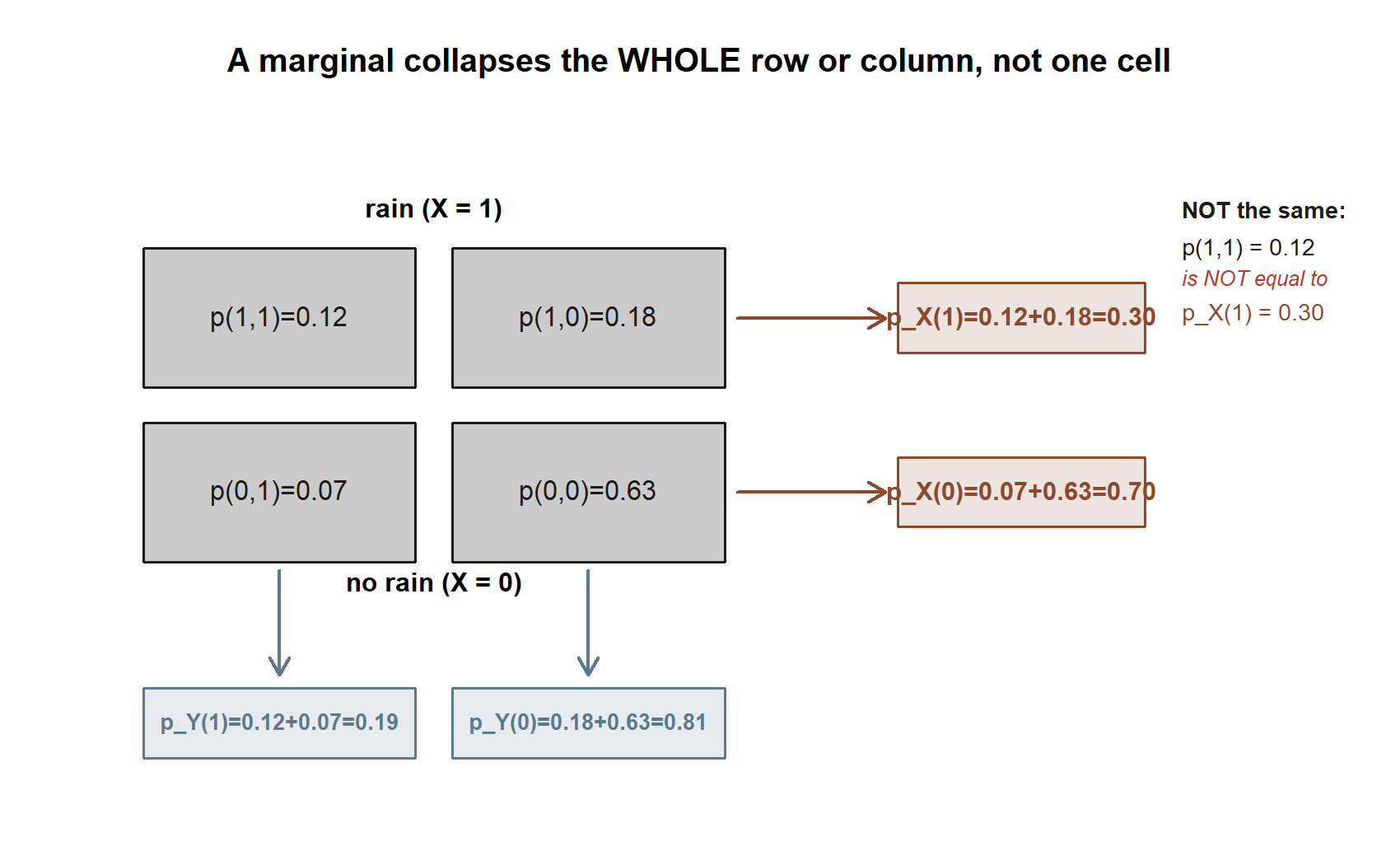

Marginals live in the margins

To recover the distribution of \(X\) alone — ignoring \(Y\) — sum each row across all of \(Y\)’s values. These row sums (and the column sums for \(Y\)) are written in the margins of the table, which is exactly why they are called marginal distributions:

\[ p_X(x) \;=\; \sum_y p(x,y), \qquad p_Y(y) \;=\; \sum_x p(x,y). \]

Marginalizing throws away the partnership information: it tells you about \(X\) as if you had never recorded \(Y\). Once you have the marginals, \(E[X]\), \(E[Y]\), \(\operatorname{Var}(X)\), and \(\operatorname{Var}(Y)\) are ordinary one-variable computations from weeks 7–8.

Conditioning slices and renormalizes

A conditional distribution answers “given that \(X = x\), how is \(Y\) distributed?” Fix the row \(X = x\), then rescale that single row so its entries sum to \(1\) — divide each joint cell by the row’s marginal:

\[ p_{Y\mid X}(y \mid x) \;=\; \frac{p(x,y)}{p_X(x)} \qquad (p_X(x) > 0). \]

This is precisely the conditional-probability definition of week 3, now applied to random-variable values. Independence is the statement that conditioning changes nothing — the conditional equals the marginal for every slice — which is algebraically the same as the joint factoring into the product of marginals:

\[ X \perp Y \quad\Longleftrightarrow\quad p(x,y) = p_X(x)\,p_Y(y)\ \text{for all } x,y \quad\Longleftrightarrow\quad p_{Y\mid X}(y\mid x) = p_Y(y)\ \text{for all } x,y . \]

Covariance, and why the identity holds

Covariance summarizes the joint movement in one number. Center each variable at its mean and average the product of the centered values:

\[ \operatorname{Cov}(X,Y) \;=\; E\!\big[(X - E[X])(Y - E[Y])\big]. \]

When \(X\) and \(Y\) tend to sit on the same side of their means together — both high or both low — the product of deviations is usually positive and the covariance is positive; when one tends to be high while the other is low, the product is usually negative and the covariance is negative. Expanding the product and using linearity of expectation gives the computational form we actually use on a table:

\[ \operatorname{Cov}(X,Y) = E\!\big[XY - X\,E[Y] - E[X]\,Y + E[X]E[Y]\big] = E[XY] - E[X]E[Y] - E[X]E[Y] + E[X]E[Y], \]

\[ \operatorname{Cov}(X,Y) \;=\; E[XY] - E[X]\,E[Y]. \]

If \(X\) and \(Y\) are independent, then \(E[XY] = E[X]E[Y]\) — the product expectation factors — so the covariance is forced to zero. That is the half of the relationship that always holds. The converse does not: we will build the warning around a case with \(\operatorname{Cov} = 0\) and yet a clear dependence.

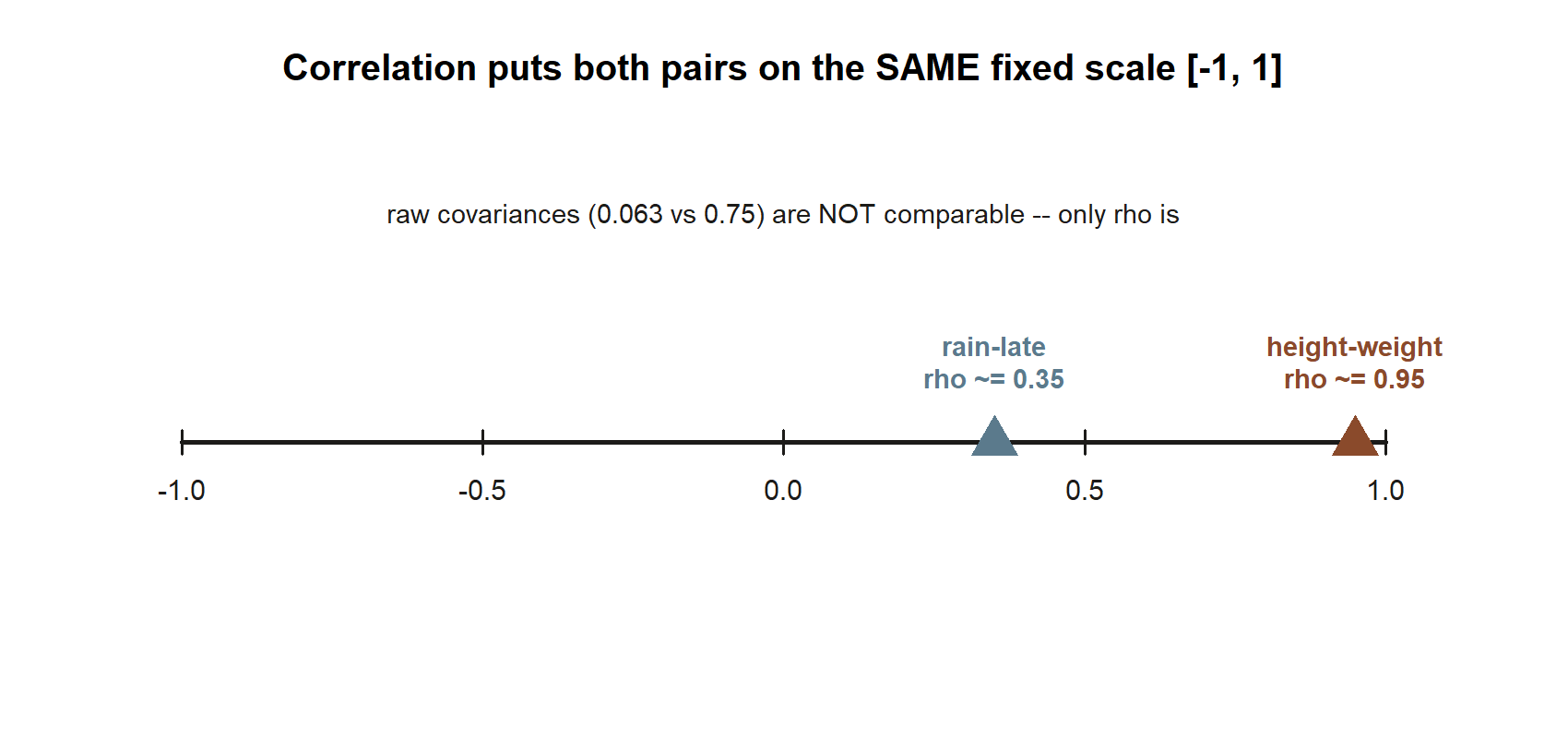

Correlation: covariance on a fixed scale

Covariance carries the units of \(X\) times the units of \(Y\), so its raw size is hard to interpret — rescale a variable and the covariance changes even though the relationship did not. Dividing by the two standard deviations cancels the units and produces a number guaranteed to live in \([-1,1]\):

\[ \rho \;=\; \frac{\operatorname{Cov}(X,Y)}{\sigma_X\,\sigma_Y}, \qquad -1 \le \rho \le 1 . \]

The sign of \(\rho\) is the sign of the covariance; its magnitude reports how close the cloud of points sits to a straight line. Endpoints \(\rho = \pm 1\) mean a perfect linear relationship; \(\rho = 0\) means no linear association — a qualifier we will press hard in the convention warning.

Worked example

Synthetic data; seed set where simulation appears. We work the recurring commuter’s morning slice symbolically, then numerically, then add a transfer example in a new context.

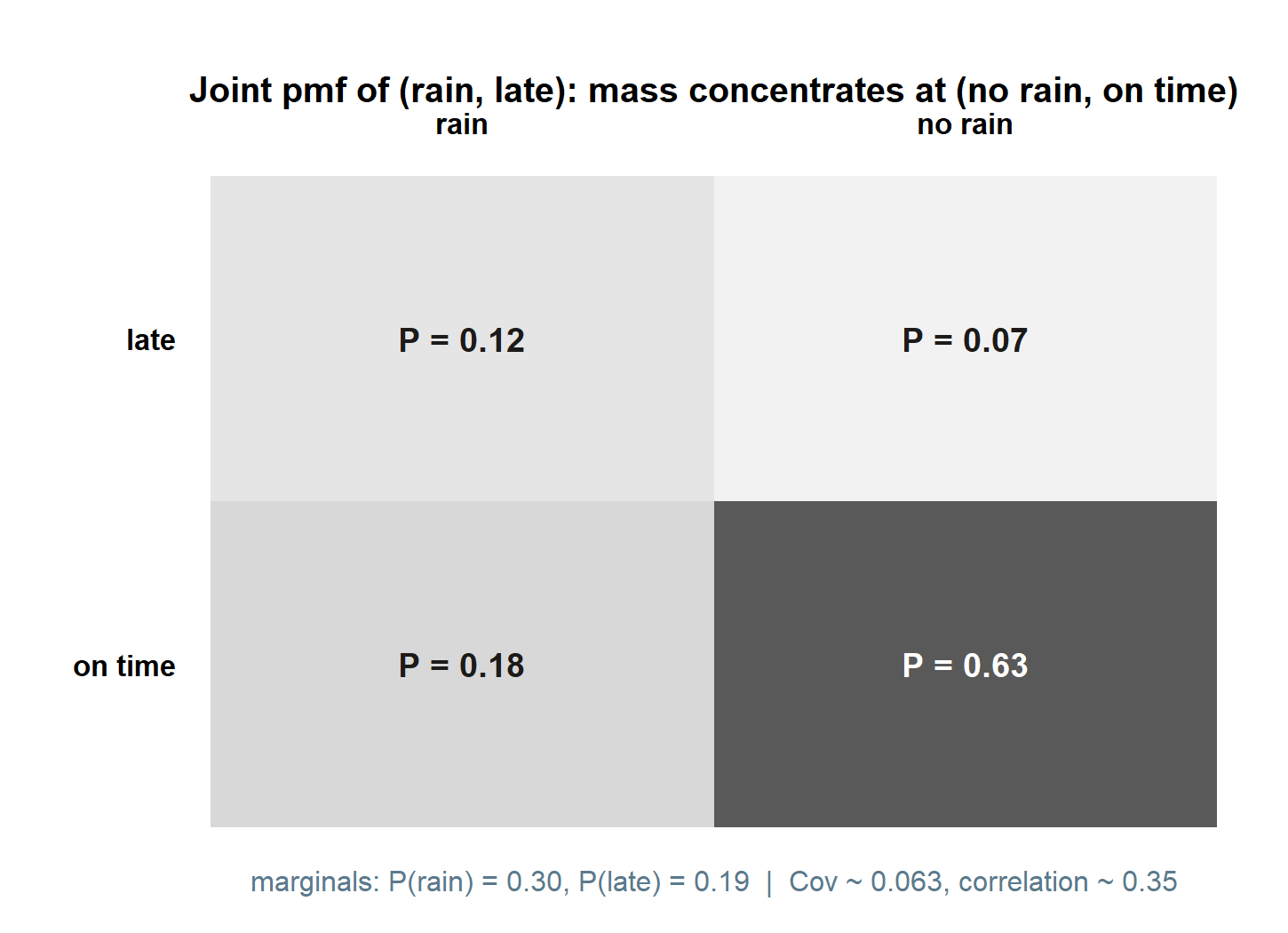

Recurring slice — the (rain, late) joint distribution

Let \(X = \mathbb{1}\{\text{it rains}\}\) (\(1\) if rain, \(0\) if not) and \(Y = \mathbb{1}\{\text{Maya is late}\}\) (\(1\) if late, \(0\) if on time). Both are indicator variables — they take only the values \(0\) and \(1\) — which is what lets us read \(E[X]\) straight off the chance of a \(1\). The synthetic joint pmf for the week is

\[ \begin{array}{c|cc|c} & Y = 0 & Y = 1 & p_X(x)\\ \hline X = 0 & 0.63 & 0.07 & 0.70\\ X = 1 & 0.18 & 0.12 & 0.30\\ \hline p_Y(y) & 0.81 & 0.19 & 1 \end{array} \]

so \(p(1,1) = 0.12\), \(p(1,0) = 0.18\), \(p(0,1) = 0.07\), \(p(0,0) = 0.63\), and the four cells sum to \(1\).

Symbolic — marginals, then means and variances. Sum each row for \(X\), each column for \(Y\):

\[ p_X(1) = 0.12 + 0.18 = 0.30, \qquad p_Y(1) = 0.12 + 0.07 = 0.19 . \]

Because \(X\) is an indicator, \(E[X] = 1\cdot p_X(1) + 0\cdot p_X(0) = p_X(1)\), and likewise \(E[Y] = p_Y(1)\):

\[ E[X] = 0.30, \qquad E[Y] = 0.19 . \]

For an indicator the variance is \(p(1-p)\), since \(E[X^2] = E[X] = p\) for a \(0/1\) variable, giving \(\operatorname{Var}(X) = E[X^2] - E[X]^2 = p - p^2 = p(1-p)\):

\[ \operatorname{Var}(X) = 0.30(1 - 0.30) = 0.30(0.70) = 0.21, \qquad \operatorname{Var}(Y) = 0.19(1 - 0.19) = 0.19(0.81) = 0.1539 . \]

Numeric — a conditional, to reconnect with weeks 3–4. Condition on rain by rescaling the \(X = 1\) row by its marginal \(0.30\):

\[ p_{Y\mid X}(1 \mid 1) = \frac{p(1,1)}{p_X(1)} = \frac{0.12}{0.30} = 0.40, \qquad p_{Y\mid X}(1 \mid 0) = \frac{p(0,1)}{p_X(0)} = \frac{0.07}{0.70} = 0.10 . \]

So \(P(\text{late} \mid \text{rain}) = 0.40\) but \(P(\text{late} \mid \text{no rain}) = 0.10\) — the conditional distribution of lateness shifts with rain. Since the conditional is not the same across slices, \(X\) and \(Y\) are not independent, exactly the verdict weeks 3–4 reached informally. We now quantify it.

Numeric — the product expectation \(E[XY]\). Because both variables are \(0/1\), the product \(XY\) is \(1\) only on the single cell where both are \(1\), and \(0\) everywhere else, so \(E[XY]\) collapses to one term:

\[ E[XY] \;=\; \sum_{x}\sum_{y} x\,y\,p(x,y) \;=\; (1)(1)\,p(1,1) \;=\; 0.12 . \]

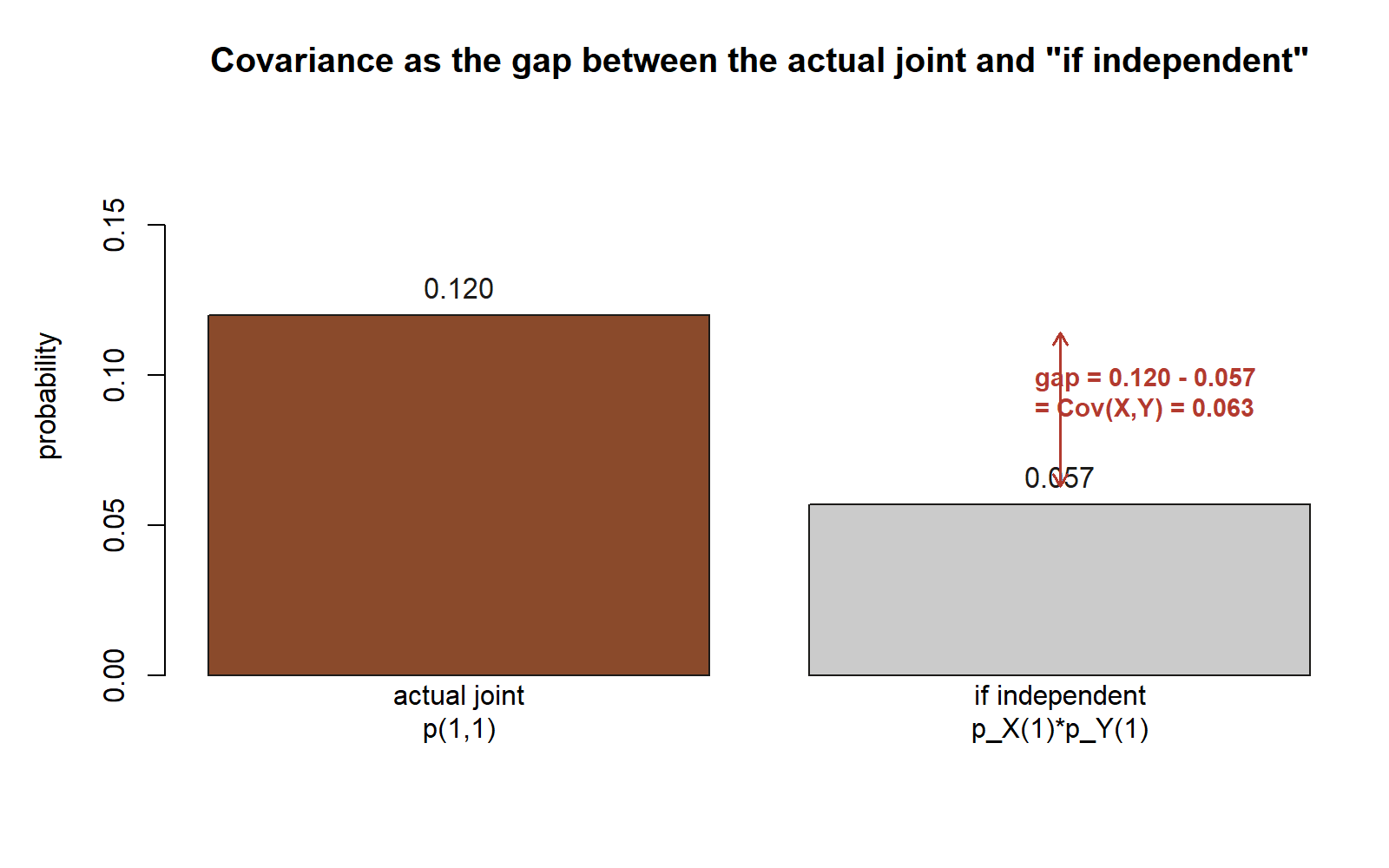

Numeric — covariance from the identity. Subtract the product of means:

\[ \operatorname{Cov}(X,Y) \;=\; E[XY] - E[X]E[Y] \;=\; 0.12 - (0.30)(0.19) \;=\; 0.12 - 0.057 \;=\; 0.063 . \]

The covariance is positive, the quantitative echo of “rain goes with lateness.”

Numeric — correlation. Standardize by the two standard deviations \(\sigma_X = \sqrt{0.21} \approx 0.4583\) and \(\sigma_Y = \sqrt{0.1539} \approx 0.3923\), whose product is \(\sigma_X\sigma_Y \approx 0.1798\):

\[ \rho \;=\; \frac{\operatorname{Cov}(X,Y)}{\sigma_X\,\sigma_Y} \;=\; \frac{0.063}{0.1798} \;\approx\; 0.35 . \]

A correlation of about \(0.35\) is a moderate positive linear association: rainy mornings and late mornings travel together, but loosely — \(\rho\) is well short of \(1\), so rain is far from a perfect predictor of being late. This single number now carries the “not independent” conclusion we have been circling since week 3.

We can check the table-based covariance by simulating mornings and estimating it from samples — shown, not executed here:

# Synthetic (rain, late) joint pmf; estimate Cov(X, Y) and rho by simulation.
# Cells: P(0,0)=0.63, P(0,1)=0.07, P(1,0)=0.18, P(1,1)=0.12  (sums to 1).
set.seed(35003)
n      <- 500000
cells  <- c("00", "01", "10", "11")
probs  <- c(0.63, 0.07, 0.18, 0.12)
draw   <- sample(cells, size = n, replace = TRUE, prob = probs)
x      <- as.integer(substr(draw, 1, 1))   # rain indicator
y      <- as.integer(substr(draw, 2, 2))   # late indicator
cov_xy <- mean(x * y) - mean(x) * mean(y)   # compare to 0.063
rho_xy <- cov_xy / (sd(x) * sd(y))          # compare to ~0.35
c(cov = cov_xy, rho = rho_xy)

Transfer example — study hours and a practice score

Switch contexts to show the machinery is general and that \(\rho\) need not be near zero. In a synthetic study two students compare notes; let \(X\) be hours spent on a problem set (taking values \(1\) or \(2\)) and \(Y\) be the score on a follow-up self-check (taking values \(0\) or \(1\)), with the joint pmf

\[ \begin{array}{c|cc|c} & Y = 0 & Y = 1 & p_X(x)\\ \hline X = 1 & 0.30 & 0.10 & 0.40\\ X = 2 & 0.15 & 0.45 & 0.60\\ \hline p_Y(y) & 0.45 & 0.55 & 1 \end{array} \]

The means are \(E[X] = 1(0.40) + 2(0.60) = 1.60\) and \(E[Y] = 0.55\). The product expectation keeps only the two cells where \(X \cdot Y \ne 0\) (those with \(Y = 1\)):

\[ E[XY] = (1)(1)(0.10) + (2)(1)(0.45) = 0.10 + 0.90 = 1.00, \]

so the covariance is

\[ \operatorname{Cov}(X,Y) = E[XY] - E[X]E[Y] = 1.00 - (1.60)(0.55) = 1.00 - 0.88 = 0.12, \]

again positive — more study hours travel with higher self-check scores. The same three moves as the rain/late slice (marginals, then \(E[XY]\), then subtract the product of means) deliver covariance regardless of context; standardizing by \(\sigma_X\sigma_Y\) would, as before, land \(\rho\) inside \([-1,1]\).

A convention warning

Zero covariance does not mean independence — and \(\rho\) only sees linear association. This is convention-risk #10 for the course, and it is the single most common overclaim of the week. The implication runs one way only:

\[ X \perp Y \;\Longrightarrow\; \operatorname{Cov}(X,Y) = 0, \qquad\text{but}\qquad \operatorname{Cov}(X,Y) = 0 \;\not\Longrightarrow\; X \perp Y . \]

Here is a clean synthetic counterexample. Let \(X\) take the values \(-1, 0, 1\) each with probability \(\tfrac{1}{3}\), and define \(Y = X^2\) exactly (so \(Y\) is \(1\) when \(X = \pm 1\) and \(0\) when \(X = 0\)). Then \(Y\) is completely determined by \(X\) — they could not be more dependent — yet their covariance is zero. By symmetry \(E[X] = 0\), and \(E[XY] = E[X \cdot X^2] = E[X^3] = \tfrac{1}{3}(-1) + \tfrac{1}{3}(0) + \tfrac{1}{3}(1) = 0\), so

\[ \operatorname{Cov}(X,Y) = E[XY] - E[X]E[Y] = 0 - 0\cdot E[Y] = 0, \qquad\text{hence } \rho = 0 . \]

Covariance and correlation are zero because the relationship is a perfect parabola, not a line — and \(\rho\) is blind to anything but the linear part. Three guardrails:

“Uncorrelated” is weaker than “independent.” A zero \(\rho\) rules out a linear trend, not all structure. Never read \(\rho = 0\) as “no relationship.”
The converse only runs from independence to zero. You may conclude \(\operatorname{Cov} = 0\) from independence, but you may not conclude independence from \(\operatorname{Cov} = 0\).
\(\rho\) measures direction and tightness of a straight-line pattern only. A strong curved relationship can have a small or zero correlation; check a plot, not just the number.

Practice (ungraded)

Self-check, no points, no submission. Use the (rain, late) joint pmf \(p(1,1)=0.12,\ p(1,0)=0.18,\ p(0,1)=0.07,\ p(0,0)=0.63\) unless noted.

Build both marginal pmfs from the table and confirm each sums to \(1\); state \(E[X]\) and \(E[Y]\) and explain why, for these indicators, each mean equals the chance of a \(1\).
Compute the conditional pmf of \(X\) given \(Y = 1\) (rescale the \(Y = 1\) column by its marginal \(0.19\)). Compare \(p_{X\mid Y}(1\mid 1)\) to \(p_X(1) = 0.30\) — what does the gap say about independence?
Recompute \(\operatorname{Cov}(X,Y)\) from the centered-product definition \(E[(X - E[X])(Y - E[Y])]\) directly on the four cells, and check it matches \(0.063\) from the identity.
Verify \(\rho \approx 0.35\) by forming \(\operatorname{Cov}/(\sigma_X\sigma_Y)\) with \(\sigma_X = \sqrt{0.21}\) and \(\sigma_Y = \sqrt{0.1539}\), and say in one sentence what its sign and size mean for Maya’s mornings.
For the \(Y = X^2\) counterexample in the warning, confirm \(\operatorname{Cov}(X,Y) = 0\) yourself, then explain in words why \(X\) and \(Y\) are nonetheless dependent.

(Worked reasoning for self-checks is not posted here; bring your attempts to office hours or a study group.)

Formula-verification status

verified: false. The math correctness gate is BLOCKED for this page. Every formula and number above — the marginals \(p_X(1) = 0.30\) and \(p_Y(1) = 0.19\), the conditionals \(0.40\) and \(0.10\), the product expectation \(E[XY] = 0.12\), the covariance \(\operatorname{Cov}(X,Y) = 0.063\), the variances \(0.21\) and \(0.1539\), the correlation \(\rho \approx 0.35\), the transfer-example values, and the \(Y = X^2\) zero-covariance counterexample — is drafted but unverified, provisional pending human/source sign-off against the course’s reference derivations. Render and lint passing are not correctness checks: a wrong formula can render perfectly. Treat all numeric values as provisional until the gate is signed off.

Reading and source pointer

This week is grounded in Grinstead & Snell, Chapters 6 and 7 — Expected Value and Variance, and Sums of Random Variables (GNU FDL, free online), which develop variance, covariance, correlation, and the behavior of sums of random variables. The supporting treatment in MIT OCW 18.05 (CC BY-NC-SA 4.0) — its material on joint distributions, covariance, and correlation — reinforces the joint-table picture and the linear-only reading of \(\rho\) with a complementary emphasis. These notes are the course’s own synthesis, grounded in but not copied from the sources. The (rain, late) joint table, the study-hours transfer example, the \(Y = X^2\) counterexample, all numbers, and the prose are original to this course; data are synthetic with seeds set.

Public vs. graded

These notes, the examples, and the practice here are public and ungraded — study material only. No graded prompts, answer keys, rubrics, point values, or due dates appear on this site. Graded checkpoints, quizzes, homework, labs, the midterm, the project, and the final live in Blackboard (the LMS), which is authoritative for due dates, submissions, and grades. If this page and Blackboard ever disagree, follow Blackboard.

Looking ahead

This week we held two random variables together and summarized their partnership with covariance and correlation. Week 13 turns to what happens when we add or average many variables. Taking \(n\) independent commute times \(C \sim \operatorname{Normal}(22, 5)\), the law of large numbers says the sample mean settles toward \(22\) as \(n\) grows, and the central limit theorem says that average is itself approximately \(\operatorname{Normal}(22,\ 5/\sqrt{n})\). We will see both by simulation — the one shown-and-run-it-yourself software week — and the independence and variance ideas from this week are exactly the ingredients those limit theorems need.
