# Synthetic shuttle-wait T on [0,30] with triangular density f(t) = (30 - t)/450.
# Sample by the inverse-cdf method, then estimate P(T <= 10) by counting.
set.seed(35003)
n <- 200000
u <- runif(n) # uniforms on (0,1)
# Invert F(t) = (60t - t^2)/900 = u -> t = 30 - 30*sqrt(1 - u)
T <- 30 - 30 * sqrt(1 - u)
mean(T <= 10) # Monte Carlo estimate of P(T <= 10), compare to 0.556Week 10 — Continuous random variables
Densities, cumulative distribution functions, and probability as area
Mathematical goal
By the end of this week you should be able to read a continuous random variable through three linked objects and the single idea that ties them together — probability is area.
The targets for the week are these statements, which we build and then use:
\[ P(a \le X \le b) \;=\; \int_a^b f(x)\,dx, \qquad P(X = x) \;=\; 0 , \]
\[ F(x) \;=\; P(X \le x) \;=\; \int_{-\infty}^{x} f(t)\,dt, \qquad F'(x) \;=\; f(x)\quad\text{wherever } f \text{ is continuous.} \]
Here \(f\) is the density (probability density function, pdf) and \(F\) is the cumulative distribution function (cdf). A legitimate density is non-negative and encloses total area \(1\):
\[ f(x) \ge 0 \quad\text{for all } x, \qquad \int_{-\infty}^{\infty} f(x)\,dx \;=\; 1 . \]
You should be able to: take a stated density, confirm it is legitimate, compute a probability as a definite integral (an area), build the cdf, and recover the density by differentiating the cdf.
The week question
When the thing we are uncertain about can take any value in a continuous range — a waiting time, a length, a temperature — what plays the role of the pmf, and why is the probability of any exact value zero?
Weeks 6–9 lived on discrete random variables: the quiz score \(X\) could only be \(0,1,2,\dots,10\), and the pmf \(p(x) = P(X = x)\) assigned a chunk of probability to each value. That picture breaks the moment the variable is a measurement that can land anywhere on an interval. Maya’s wait for the next shuttle is not “3 minutes or 4 minutes”; it is some real number like \(3.71\ldots\) minutes, and there are infinitely many such numbers in any interval. This week answers what replaces \(p(x)\) and how we read probability off it.
Notation
| Symbol | Meaning |
|---|---|
| \(X\) | a continuous random variable (capital; a value it takes is lowercase \(x\)) |
| \(f(x)\), \(f_X(x)\) | probability density function (pdf) — a height, not a probability |
| \(F(x)\), \(F_X(x)\) | cumulative distribution function (cdf), \(F(x) = P(X \le x)\) |
| \(\int_a^b f(x)\,dx\) | area under the density between \(a\) and \(b\) = \(P(a \le X \le b)\) |
| \(f(x) \ge 0\) | densities are never negative |
| \(\int_{-\infty}^{\infty} f = 1\) | total area under a density equals \(1\) |
| \(F'(x) = f(x)\) | the density is the derivative of the cdf |
| \(\operatorname{Uniform}(a,b)\) | continuous uniform on \([a,b]\); constant density \(1/(b-a)\) |
| \(T\) | this week’s recurring variable: Maya’s wait (minutes) for the next shuttle |
Conceptual setup

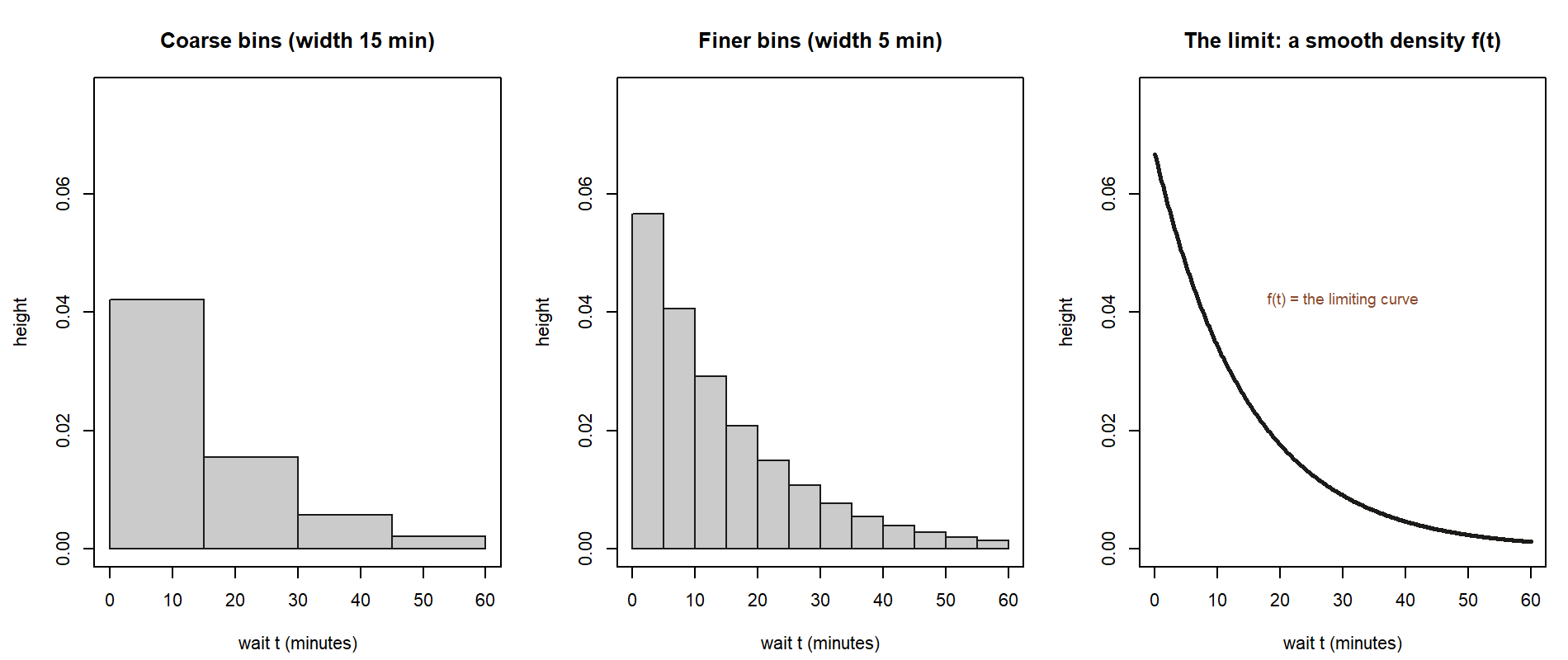

From a histogram to a density
Start with something familiar. Suppose Maya timed her shuttle wait on many mornings and binned the results. A histogram with wide bins is blocky; narrow the bins and collect more mornings, and the staircase of bars smooths toward a curve. If we scale the histogram so its total area is \(1\) (a density histogram rather than a count histogram), then the area of the bars over an interval already estimates the probability of landing in that interval. The limiting smooth curve is the density \(f(x)\). So a density is the idealized, infinitely-fine, area-\(1\) histogram — and the rule “probability = area of the bars over the interval” simply becomes “probability = area under the curve over the interval.”

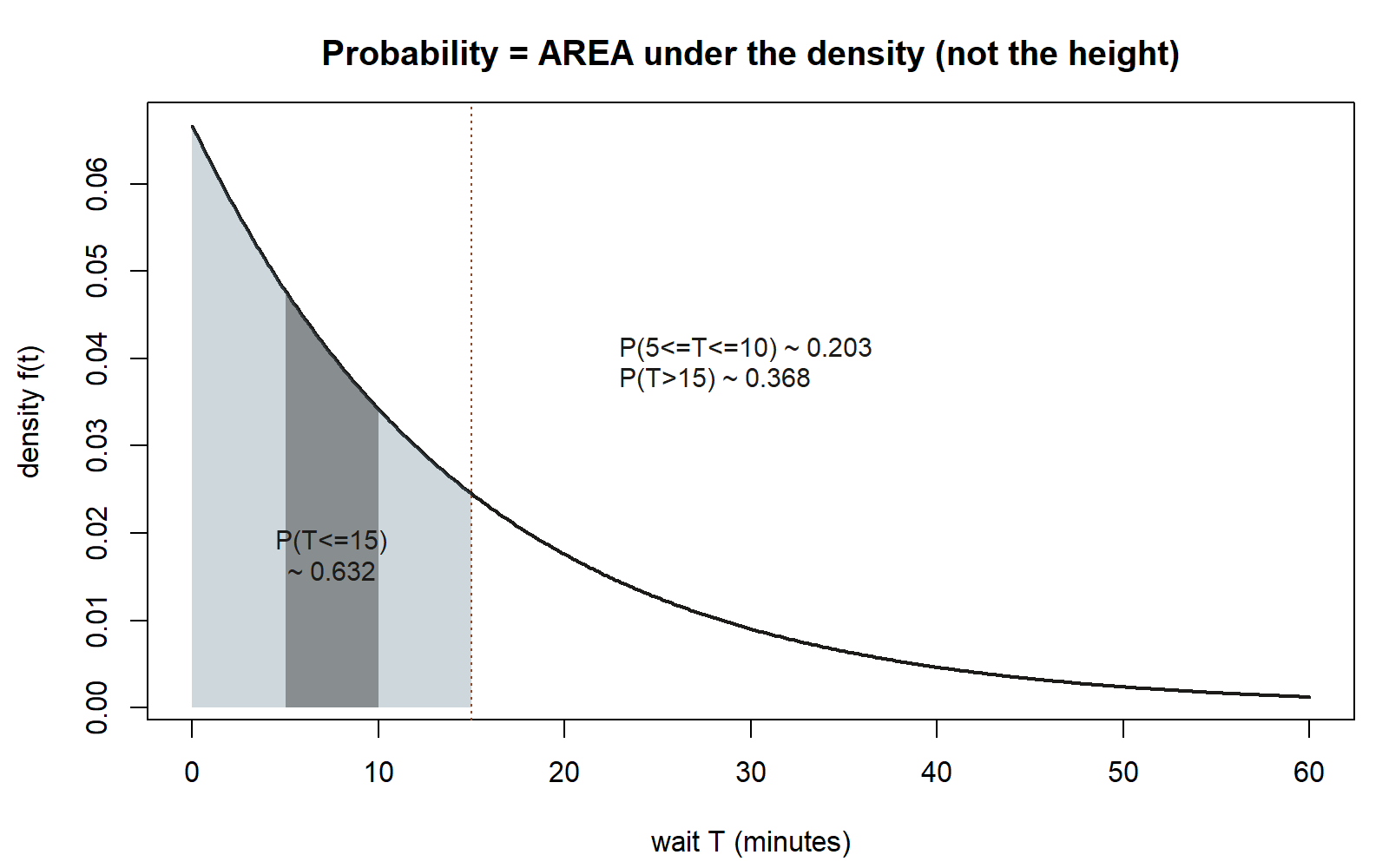

Area, not height, carries the probability
This is the conceptual hinge of the whole week. For a discrete variable, the height \(p(x)\) was the probability \(P(X = x)\). For a continuous variable the height \(f(x)\) is a density — probability per unit of \(x\) — and only an area (height times a width, accumulated by an integral) is an actual probability:
\[ P(a \le X \le b) \;=\; \int_a^b f(x)\,dx . \]
A height alone tells you nothing about a probability until you sweep it across an interval.
Why \(P(X = x) = 0\), and total area \(1\)
Take the interval \([a,b]\) and shrink it to a single point by letting \(b \to a\). The area under any bounded density over a zero-width interval is zero:
\[ P(X = a) \;=\; \int_a^a f(x)\,dx \;=\; 0 . \]
So every exact value has probability zero for a continuous variable — yet the variable is certain to take some value, because the total area is \(1\). Two consequences worth carrying: (1) because single points carry no probability, the endpoints do not matter, so
\[ P(a \le X \le b) = P(a < X < b) = P(a \le X < b) = P(a < X \le b); \]
the \(\le\)-versus-\(<\) distinction that mattered for discrete variables disappears here. (2) The legitimacy conditions \(f \ge 0\) and \(\int_{-\infty}^{\infty} f = 1\) are the continuous echoes of “\(p(x)\ge 0\)” and “\(\sum_x p(x) = 1\).”

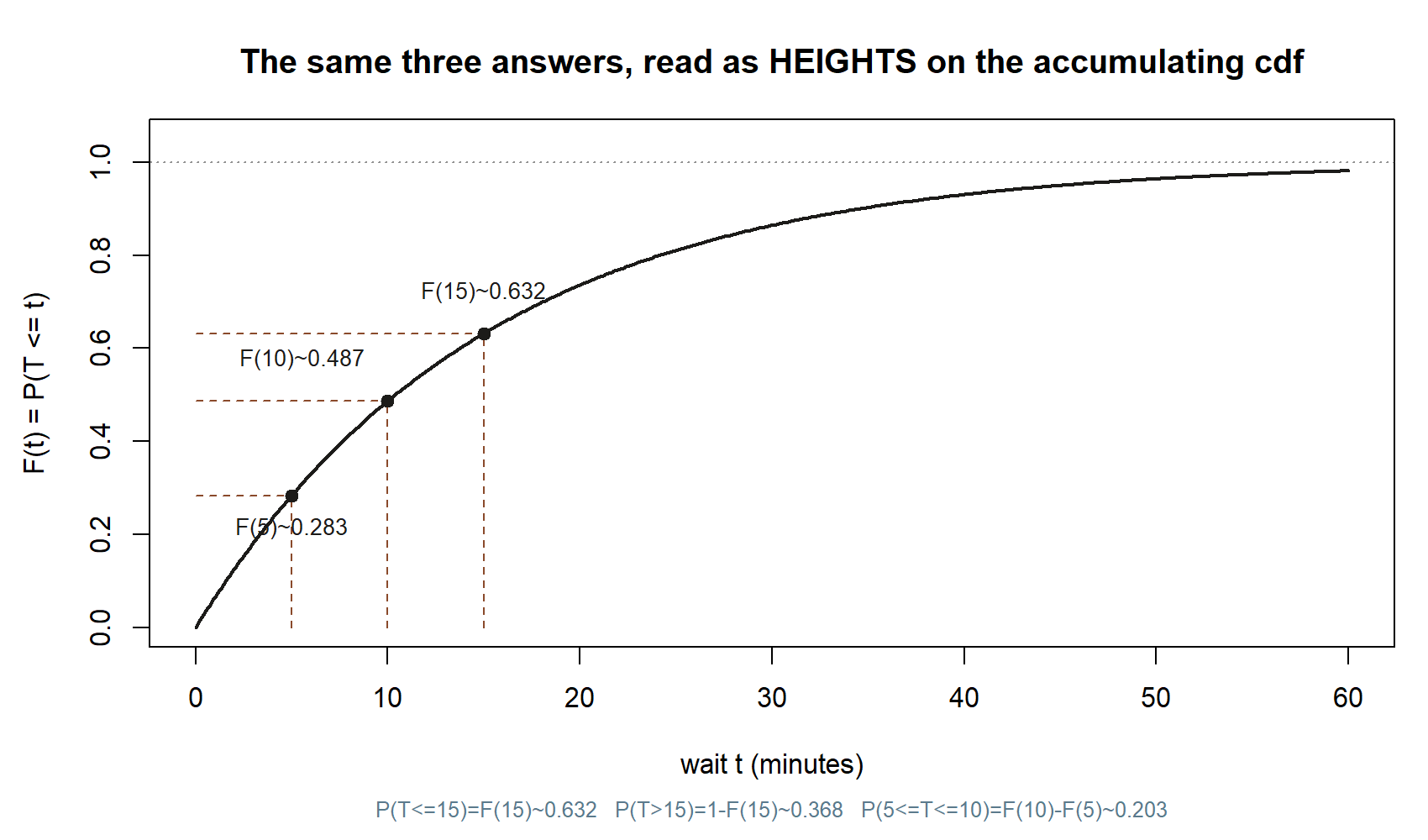

The cdf accumulates the density
The cdf is the running total of area from the far left up to \(x\):
\[ F(x) \;=\; P(X \le x) \;=\; \int_{-\infty}^{x} f(t)\,dt . \]
It climbs from \(0\) at the far left to \(1\) at the far right and never decreases. By the Fundamental Theorem of Calculus, differentiating the accumulated area returns the height you started from:
\[ F'(x) \;=\; f(x)\quad\text{wherever } f \text{ is continuous.} \]
So \(f\) and \(F\) are two views of the same object: integrate the density to get the cdf, differentiate the cdf to get the density. Any interval probability is then a difference of cdf values:
\[ P(a \le X \le b) \;=\; F(b) - F(a). \]
Worked example
Synthetic data; seed set where simulation appears. We work the recurring commuter’s morning slice symbolically, then numerically, then add a transfer example in a new context.
Recurring slice — Maya’s wait \(T\) for the next shuttle
Maya arrives at the stop at a random moment. Let \(T\) be her wait, in minutes, until the next shuttle. Suppose shuttles are most likely to come soon after she arrives but the wait can stretch out to \(30\) minutes, and model \(T\) with a triangular density on \([0,30]\) that starts high and falls linearly to zero:
\[ f(t) \;=\; \begin{cases} c\,(30 - t), & 0 \le t \le 30,\\[2pt] 0, & \text{otherwise.} \end{cases} \]
Symbolic — pin down \(c\) from total area \(1\). The density must enclose area \(1\):
\[ \int_0^{30} c\,(30 - t)\,dt \;=\; c\left[\,30t - \tfrac{t^2}{2}\,\right]_0^{30} \;=\; c\left(900 - 450\right) \;=\; 450\,c \;=\; 1, \]
so \(c = \dfrac{1}{450}\). Note the peak height is \(f(0) = 30c = \tfrac{30}{450} = \tfrac{1}{15} \approx 0.0667\), well below \(1\), but a density is allowed to exceed \(1\) in general (see the convention warning).
Symbolic — build the cdf. For \(0 \le x \le 30\),
\[ F(x) \;=\; \int_0^{x} \frac{30 - t}{450}\,dt \;=\; \frac{1}{450}\left[\,30t - \tfrac{t^2}{2}\,\right]_0^{x} \;=\; \frac{30x - \tfrac{x^2}{2}}{450} \;=\; \frac{60x - x^2}{900}. \]
with \(F(x) = 0\) for \(x < 0\) and \(F(x) = 1\) for \(x > 30\). As a check, \(F(0) = 0\) and \(F(30) = \dfrac{1800 - 900}{900} = 1\), and differentiating gives back the density: \(F'(x) = \dfrac{60 - 2x}{900} = \dfrac{30 - x}{450} = f(x)\). Good.
Numeric — the probability the wait is at most \(10\) minutes. This is an area, equivalently a cdf value:
\[ P(T \le 10) \;=\; F(10) \;=\; \frac{60(10) - 10^2}{900} \;=\; \frac{600 - 100}{900} \;=\; \frac{500}{900} \;\approx\; 0.556. \]
Reading it the other way — directly as the integral / area under the triangle from \(0\) to \(10\):
\[ P(T \le 10) \;=\; \int_0^{10} \frac{30 - t}{450}\,dt \;=\; \frac{1}{450}\left(300 - 50\right) \;=\; \frac{250}{450} \;=\; \frac{5}{9} \;\approx\; 0.556 . \]
The two routes agree, as they must. And a mid-range window is just a difference of cdf values:
\[ P(10 \le T \le 20) \;=\; F(20) - F(10) \;=\; \frac{1200 - 400}{900} - \frac{500}{900} \;=\; \frac{800 - 500}{900} \;=\; \frac{300}{900} \;=\; \frac{1}{3} \;\approx\; 0.333. \]
Finally, the “exact value” point we keep stressing: \(P(T = 10) = F(10) - F(10) = 0\), so it makes no difference whether we wrote \(\le\) or \(<\) above.

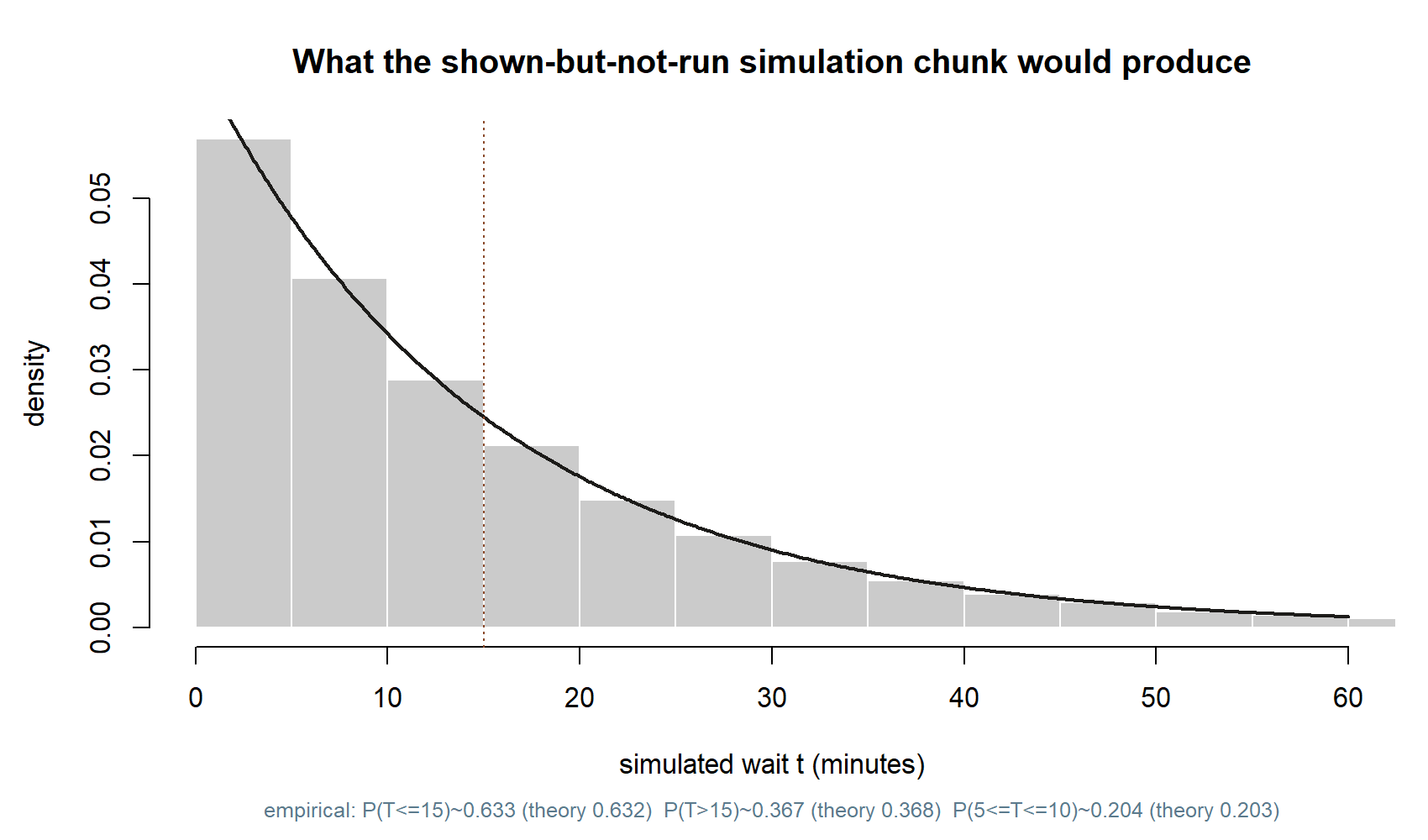

We can check an area by simulating the wait and counting — shown, not executed here:

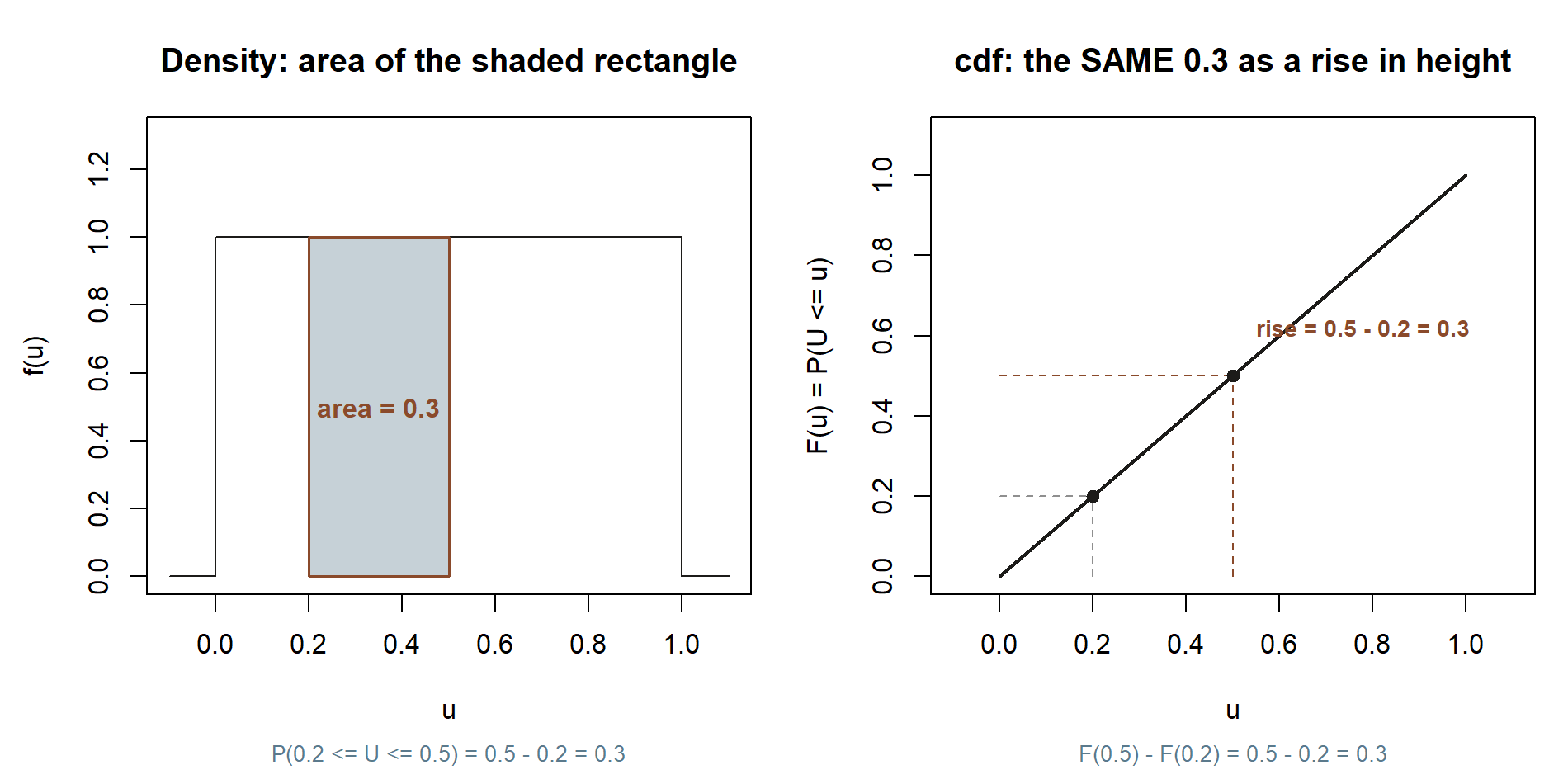

Transfer example — a constant (“uniform”) density in a new context
Switch contexts to show the machinery is general. A campus sensor reports the next reading at a moment that is equally likely anywhere in a \(5\)-second cycle, so the reading time \(U\) (seconds into the cycle) is \(\operatorname{Uniform}(0,5)\) with the constant density
\[ f(u) \;=\; \begin{cases} \dfrac{1}{5}, & 0 \le u \le 5,\\[4pt] 0, & \text{otherwise.} \end{cases} \]
It is legitimate: \(f \ge 0\), and the area is the rectangle \(\tfrac{1}{5}\times 5 = 1\). The cdf is the accumulated rectangle area, a straight ramp:
\[ F(u) \;=\; \int_0^{u} \tfrac{1}{5}\,dt \;=\; \frac{u}{5}\quad (0 \le u \le 5), \]
so, for example,
\[ P(1 \le U \le 3) \;=\; F(3) - F(1) \;=\; \frac{3}{5} - \frac{1}{5} \;=\; \frac{2}{5} \;=\; 0.40 . \]
Same three moves as the shuttle wait — confirm area \(1\), accumulate to get \(F\), difference \(F\) to get an interval probability — now with a flat density instead of a sloped one. The method does not depend on the shape of \(f\).
A convention warning
A density is not a probability, and it may exceed \(1\). This is convention-risk #8 for the course, and it is the single most common misread of the week. The value \(f(x)\) is a height — probability per unit of \(x\) — not the chance of anything. Three guardrails:
- Only areas are probabilities. \(f(10) = \tfrac{20}{450} \approx 0.044\) for the shuttle wait is not “the probability the wait is \(10\) minutes” (that probability is \(0\)). It is a density value; you must integrate over an interval to get a probability.

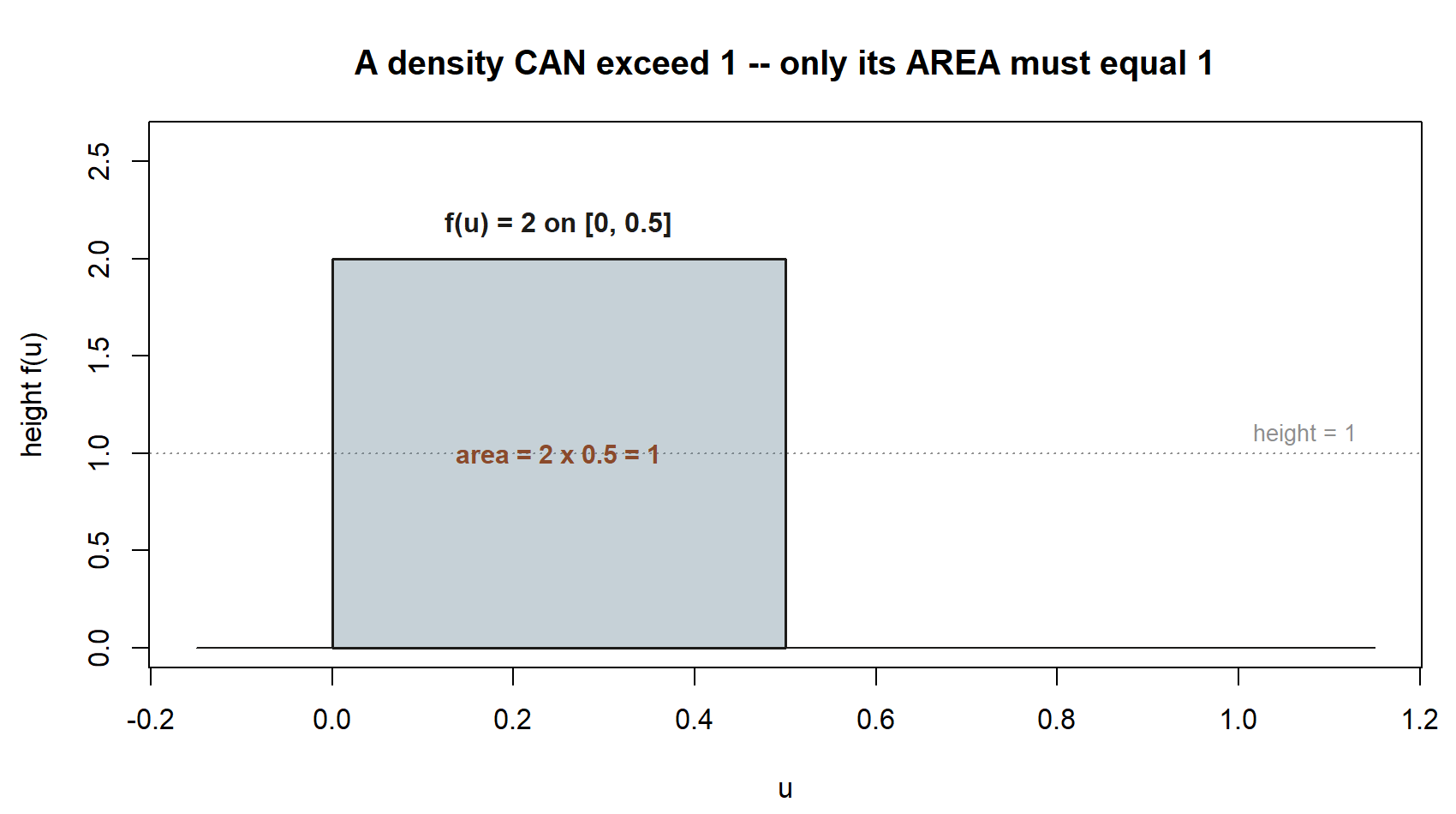

- Heights can be bigger than \(1\). Concentrate a legitimate density on a narrow interval and its height must rise to keep the enclosed area at \(1\). For instance \(\operatorname{Uniform}(0, 0.5)\) has constant density \(f = 1/0.5 = 2 > 1\) everywhere on its support — perfectly legal, because its area is still \(2 \times 0.5 = 1\). A pmf value can never exceed \(1\); a density value can.
- Endpoints don’t change the answer. Since \(P(X = x) = 0\), the symbols \(\le\) and \(<\) give the same probability for continuous \(X\). (For the discrete variables of weeks 6–9, they did not — there the boundary value carried real mass.) Do not import the discrete habit of fussing over the endpoint.
Practice (ungraded)
Self-check, no points, no submission. Use the shuttle-wait density \(f(t) = (30 - t)/450\) on \([0,30]\) with cdf \(F(x) = (60x - x^2)/900\) unless noted.
- Confirm the density is legitimate two ways: that \(f(t) \ge 0\) on \([0,30]\), and that the triangle’s area equals \(1\) using the geometric area \(\tfrac{1}{2}\,(\text{base})(\text{height})\).
- Compute \(P(T \le 5)\) and \(P(T \ge 20)\) as cdf values, then sketch each as a region under the triangle.
- Explain in one sentence why \(P(T = 7)\) and \(P(7 \le T \le 7.0001)\) are different in kind, and estimate the second.
- For the sensor \(U \sim \operatorname{Uniform}(0,5)\), find the value \(m\) with \(F(m) = 0.5\) (the median), and say in words what “median wait” means in terms of area.
- A density is proposed as \(g(x) = kx\) on \([0,4]\) and \(0\) elsewhere. Find \(k\) so the area is \(1\), then compute \(P(X \le 2)\). Is \(g(2)\) a probability? Justify.
(Worked reasoning for self-checks is not posted here; bring your attempts to office hours or a study group.)
Formula-verification status
verified: false. The math correctness gate is BLOCKED for this page. Every formula above — the density-legitimacy conditions, the normalizing constant \(c = 1/450\), the cdf \(F(x) = (60x - x^2)/900\), the area \(P(T \le 10) = 5/9 \approx 0.556\), the uniform results, and the \(F' = f\) relation — is drafted but unverified, provisional pending human/source sign-off against the course’s reference derivations. Render and lint passing are not correctness checks: a wrong formula can render perfectly. Treat all numeric values as provisional until the gate is signed off.
Reading and source pointer
This week is grounded in Grinstead & Snell, Chapter 2 — Continuous Probability Densities (GNU FDL, free online), which introduces densities, the area-as-probability definition, and the cdf. The supporting treatment in MIT OCW 18.05 (CC BY-NC-SA 4.0) — its continuous-random-variable material on the pdf/cdf and the area picture — reinforces the same ideas with a complementary emphasis. These notes are the course’s own synthesis, grounded in but not copied from the sources. The triangular shuttle-wait density, the sensor example, all numbers, and the prose are original to this course; data are synthetic with seeds set.
Public vs. graded
These notes, the examples, and the practice here are public and ungraded — study material only. No graded prompts, answer keys, rubrics, point values, or due dates appear on this site. Graded checkpoints, quizzes, homework, labs, the midterm, the project, and the final live in Blackboard (the LMS), which is authoritative for due dates, submissions, and grades. If this page and Blackboard ever disagree, follow Blackboard.
Looking ahead
We built the continuous machinery generically this week: any non-negative, area-\(1\) curve is a density, and probability is the area underneath. Week 11 fills that frame with the named continuous models you will reach for most. The shuttle wait \(T\) becomes \(T \sim \operatorname{Exponential}(\text{rate } \lambda = 4/\text{hr})\) with mean \(1/\lambda = 15\) minutes and \(P(T \le 15\ \text{min}) = 1 - e^{-1} \approx 0.632\), and Maya’s whole commute time becomes \(C \sim \operatorname{Normal}(\mu = 22, \sigma = 5)\) with \(P(C \le 30) = \Phi(1.6) \approx 0.945\). Same definition of probability-as-area — just specific, repeatedly useful densities and their cdfs.
