Week 11 — Robust regression ideas

Why least squares breaks under contamination, and how robust fits hold

The week question

Last week you saw a single far-out point inflate a standard deviation and drag a mean off the center of the data. This week you give the data an \(x\)-axis and try to fit a line, and the same fragility returns in a sharper form. A regression line is a summary too — the conditional center of \(y\) as \(x\) moves — and least squares builds that summary by minimizing squared residuals, so a single contaminated point can bend the whole line toward itself. This week’s question is narrow and load-bearing: why does ordinary least squares break under contamination, and what does a robust fit do differently so that it holds? The answer is not “delete the bad point and refit.” It is to understand which points move which fit, and to choose an estimator whose logic downweights an extreme observation instead of letting it dominate.

Why this matters

Real data are rarely clean. A transcription error, a sensor that saturates, a respondent who answered a different question, a single subject who behaved nothing like the rest — any of these can plant one or two points far from the structure the other thirty-eight follow. With ordinary least squares, you do not get to ignore those points: the method pays a squared penalty for distance, so a residual of \(20\) counts not twice as much as a residual of \(10\) but four times as much. One faraway point can therefore outvote the entire rest of the sample. The fit you report is then a compromise between the structure and the contamination — and it can be a bad compromise, flat where the truth is steep, or steep where the truth is flat.

This is the regression face of the course’s signature lesson. A median resists a wild value because it cares only about rank, not magnitude; the mean does not. A line fit by least absolute deviations resists a wild \(y\) for the same reason the median does — it minimizes \(\sum |r_i|\), not \(\sum r_i^2\). Theil–Sen resists by taking a median of pairwise slopes. Huber M-estimation resists by capping the influence of large residuals. These are not three unrelated tricks; they are three expressions of one idea — let an extreme point speak, but do not let it shout — which is the same idea behind the median, the trimmed mean, and the MAD from Week 10. Knowing which estimator to reach for, and knowing what it does and does not protect you from, is what keeps a contaminated dataset from quietly producing a confidently wrong line.

Learning goals

By the end of this week you should be able to:

Explain why ordinary least squares (OLS) minimizes \(\sum r_i^2\) and why that squared penalty makes it sensitive to a single high-leverage point or vertical outlier.
Distinguish a vertical outlier (an unusual \(y\) at an ordinary \(x\)) from a high-leverage point (an unusual \(x\)), and say which kind moves a slope most and why.
Describe three robust slope estimators — least absolute deviations (L1), Theil–Sen, and Huber M-estimation — at the level of what each one minimizes or medians or downweights.
Read a robust slope alongside an OLS slope on the same contaminated data, name which points move which fit, and report the comparison honestly rather than silently deleting points.
State the assumption-ladder trade for a robust regression: what it assumes, what it downweights, what it protects against, and what it still cannot prove.

Core vocabulary

Residual (\(r_i\)) — the vertical gap between an observed \(y_i\) and the fitted line, \(r_i = y_i - (\hat\beta_0 + \hat\beta_1 x_i)\); the quantity every fitting method scores.
Ordinary least squares (OLS) — the fit that minimizes the sum of squared residuals \(\sum_i r_i^2\); efficient under clean, light-tailed data, but not resistant to contamination.
Vertical outlier — a point with an unusual \(y\) at a typical \(x\); it inflates residual spread and can shift the intercept, but on its own it bends the slope less than a leverage point.
High-leverage point — a point with an unusual \(x\) (far from \(\bar x\)); it sits on a long lever arm, so even a moderately wrong \(y\) there can swing the slope dramatically.

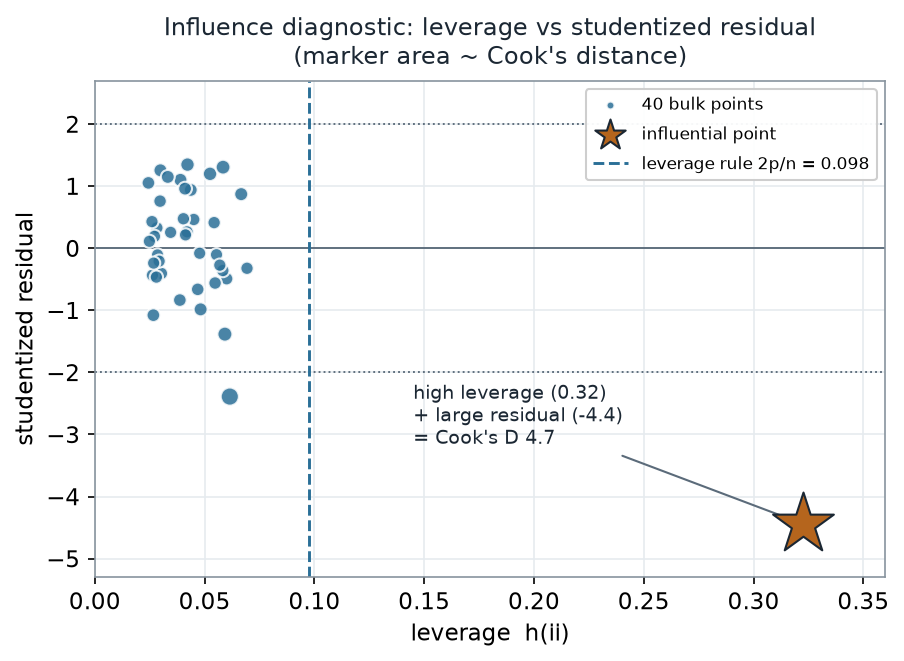

Influence — the actual effect a point has on the fit; high influence usually means high leverage and a large residual together. Flagged by Cook’s distance.
Least absolute deviations (L1) — the fit that minimizes \(\sum_i |r_i|\); the regression analogue of the median, resistant to vertical outliers.
Theil–Sen estimator — the slope equal to the median of all pairwise slopes \(\operatorname{median}_{i<j}\!\big[(y_j - y_i)/(x_j - x_i)\big]\); resistant by construction.
Huber M-estimation — a fit that minimizes \(\sum_i \rho(r_i)\) for a loss \(\rho\) that is quadratic for small residuals and linear for large ones, so big residuals are downweighted.
Breakdown point — the fraction of contamination an estimator tolerates before it can be driven arbitrarily wrong; about \(0\) for OLS, higher for the robust fits.

Concept development

Why least squares bends: the squared penalty and the lever arm

Ordinary least squares chooses the intercept and slope that make

\[ \sum_{i=1}^{n} r_i^2 = \sum_{i=1}^{n}\big(y_i - \hat\beta_0 - \hat\beta_1 x_i\big)^2 \]

as small as possible. The squaring is the whole story. A point that lands \(2\) residual units from the line contributes \(4\) to the sum; a point that lands \(20\) units away contributes \(400\) — a hundred times more. So the optimizer will tilt and shift the line a long way to shave a little off that one enormous squared term, even at the cost of fitting the other points worse. Least squares, in short, listens loudest to whoever is furthest away.

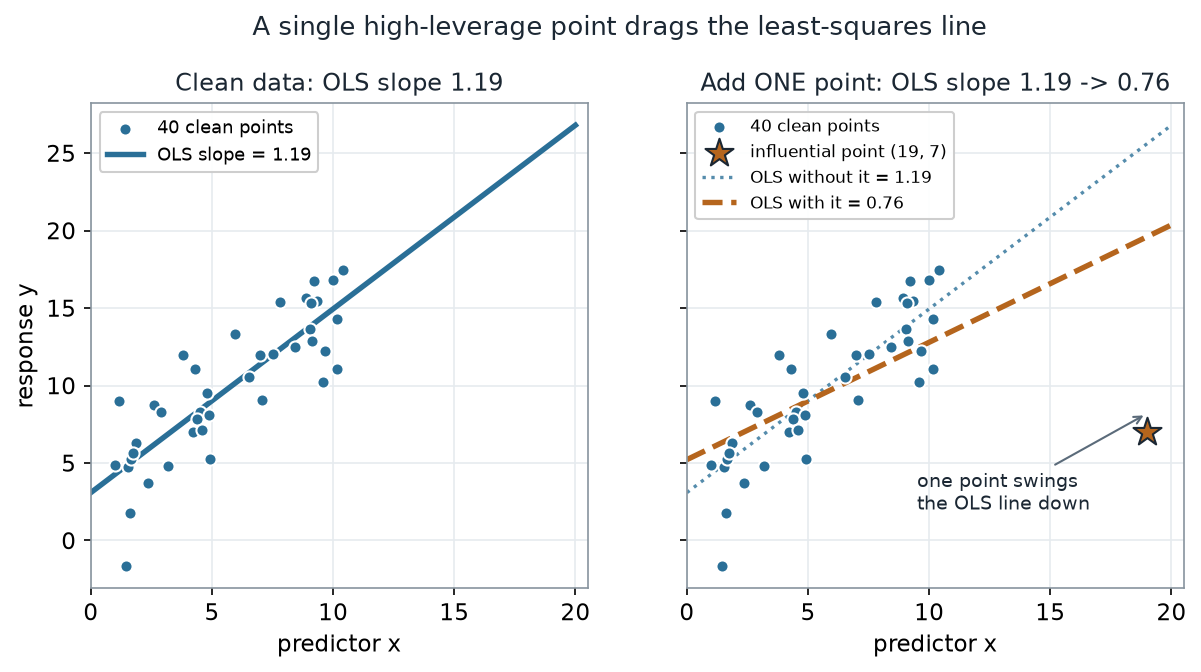

Distance in \(x\) makes this worse through leverage. A point far from \(\bar x\) sits at the end of a long lever arm: rotating the line slightly there produces a large change in its fitted value, so the optimizer can buy a big reduction in that point’s squared residual with a small rotation. The result is that a single high-leverage point with a “wrong” \(y\) can set the slope almost by itself. This is exactly what happens in the recurring dataset.

In Dataset D (synthetic; seed set), \(n = 40\) participants have a clean linear structure,

\[ \text{gain} \approx 2 + 1.5 \cdot \text{sessions}, \qquad \text{residual SD} \approx 4, \]

so the honest slope is about \(1.5\) points of wellbeing gain per session attended. Two contaminating points are planted: a high-leverage point at \(\text{sessions} = 20\) (the far right edge of \(x\)) with \(\text{gain} = 2\), and a vertical outlier at \(\text{sessions} = 5\) with \(\text{gain} = 40\). Fit OLS to the full contaminated sample and the slope collapses to about \(0.6\) — the clean OLS slope \(\approx 1.5\) flattened to OLS slope \(\approx 0.6\). The leverage point at the right, sitting low when the structure says it should sit high, drags the right end of the line down and flattens it. Interpretation: under contamination, OLS reports roughly \(0.6\) points of gain per session — well under half the real \(1.5\) — so a reader would badly understate how much attendance helps. The assumption-ladder move: OLS assumes the residuals are well-behaved (roughly symmetric, light-tailed, no contamination); nothing here is resampled or downweighted; it protects against nothing when that assumption fails, and it certainly cannot prove the slope is small — it only reports the number the squared penalty forced on it.

L1 and Theil–Sen: resisting by ranks and medians, not magnitudes

The first robust idea is to stop squaring. Least absolute deviations (L1) fits the line that minimizes

\[ \sum_{i=1}^{n} |r_i| \]

instead of \(\sum r_i^2\). Because the penalty grows only linearly with distance, a residual of \(20\) counts twenty times a residual of \(1\), not four hundred times — a far-out point no longer dominates. L1 is to regression what the median is to a batch of numbers: it tracks the bulk and shrugs at the tails. On Dataset D, the L1 (least-absolute-deviations) slope \(\approx 1.5\) — it recovers the clean structure almost exactly. Interpretation: L1 reads attendance as worth about \(1.5\) gain points per session, matching the clean signal, because the vertical outlier and the low-leverage point can no longer buy a cheap tilt. Assumption-ladder move: L1 assumes the bulk of the data follow a line; it downweights large residuals (implicitly, by not squaring them); it protects against vertical outliers and, here, the leverage point; it cannot prove the two odd points are errors — it just refuses to be governed by them.

The second robust idea throws out the residual machinery entirely and works from slopes between pairs of points. The Theil–Sen estimator computes the slope of the line through every pair of observations and takes their median:

\[ \hat\beta_1^{\text{TS}} = \operatorname*{median}_{i < j}\;\frac{y_j - y_i}{x_j - x_i}. \]

Most pairs of the \(40\) points lie on the clean structure, so most pairwise slopes are near \(1.5\); the handful of pairs involving a contaminating point give wild slopes, but those land in the tails of the collection of pairwise slopes, and the median ignores tails. On Dataset D, the Theil–Sen slope \(\approx 1.45\) — essentially the clean structure. Interpretation: Theil–Sen says about \(1.45\) gain points per session, recovering the signal because a median of pairwise slopes is governed by the many ordinary pairs, not the few contaminated ones. Assumption-ladder move: Theil–Sen assumes a monotone, roughly linear relationship; it ranks (medians) the pairwise slopes; it protects against a minority of contaminated points; it cannot prove the relationship is truly linear, only that the typical pairwise slope is about \(1.45\).

Huber M-estimation: a loss that is quadratic in the middle and linear in the tails

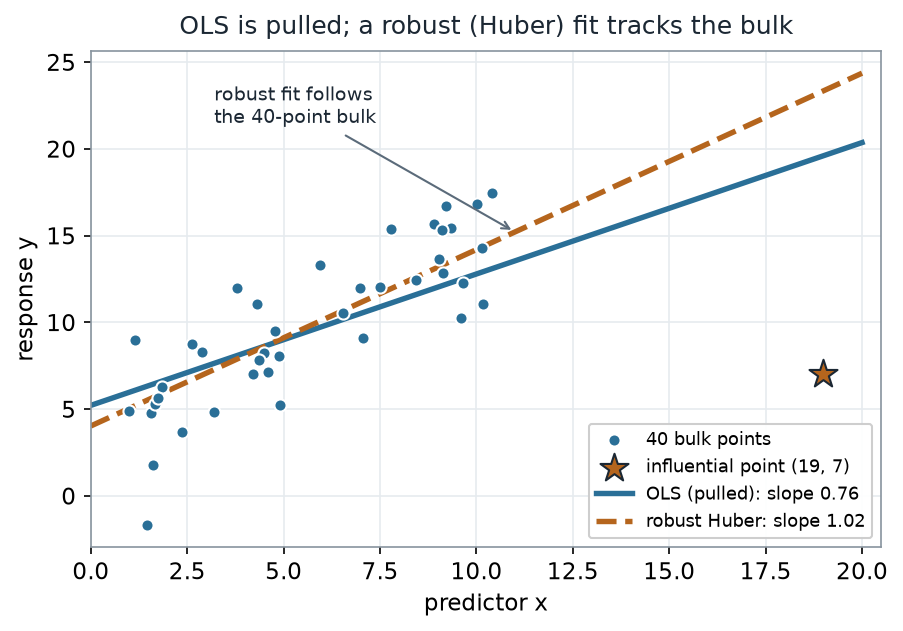

The third robust idea keeps the spirit of least squares but changes the shape of the penalty. Huber M-estimation minimizes \(\sum_i \rho(r_i)\) where the Huber loss \(\rho\) is

\[ \rho(r) = \begin{cases} \tfrac{1}{2} r^2, & |r| \le k, \\[4pt] k\,|r| - \tfrac{1}{2}k^2, & |r| > k, \end{cases} \]

for a tuning constant \(k\). For small residuals it is the familiar quadratic, so Huber behaves like least squares on the well-fit bulk and keeps OLS’s efficiency there. For large residuals it switches to a linear penalty, so an extreme point’s pull stops growing without bound — it is downweighted rather than allowed to dominate. Equivalently, Huber solves a weighted least-squares problem in which points with big residuals get small weights, recomputed until the fit settles.

On Dataset D, the Huber M-estimate slope \(\approx 1.4\) — close to the clean \(1.5\), recovering most of the structure the contamination hid. Interpretation: Huber reads attendance as worth about \(1.4\) gain points per session; it lands a touch below L1 and Theil–Sen here because, near the tuning threshold, it still gives the odd points a little weight (that is the price of staying efficient on the clean part). Assumption-ladder move: Huber assumes the bulk is light-tailed and linear; it downweights residuals larger than \(k\); it protects against moderate contamination and heavy tails; it cannot prove the model is correct, and — important — plain Huber M-estimation protects against vertical outliers better than against high leverage, because a leverage point can have a small residual to the very line it is distorting. That last point is why you compare several robust fits rather than trusting one.

Stacked together on Dataset D, the four fits tell the story at a glance: clean OLS \(\approx 1.5\), contaminated OLS \(\approx 0.6\), Theil–Sen \(\approx 1.45\), Huber \(\approx 1.4\), L1 \(\approx 1.5\). The robust trio agrees near the clean signal; OLS alone has been captured by two points out of forty. Least squares minimizes squared residuals, so one far point dominates; the robust fits downweight it.

Worked examples

Worked example — engagement vs wellbeing gain under contamination (recurring slice)

What is assumed. You assume the clean part of Dataset D (\(n = 40\); synthetic, seed set) follows a line, \(\text{gain} \approx 2 + 1.5\cdot\text{sessions}\) with residual SD \(\approx 4\), and that some points may be contaminated — specifically a high-leverage point at \(\text{sessions} = 20\), \(\text{gain} = 2\), and a vertical outlier at \(\text{sessions} = 5\), \(\text{gain} = 40\). You do not assume which points are bad; the robust fits will reveal that by how they vote.

Computation. The static R below fits OLS and three robust estimators to the same contaminated data. It is shown as teaching code and is not executed here.

set.seed(45203)

# Dataset D: n = 40, clean structure gain ~ 2 + 1.5 * sessions, residual SD ~ 4
sessions <- runif(40, 0, 20)
gain     <- 2 + 1.5 * sessions + rnorm(40, 0, 4)

# Two contaminating points (lock):
sessions[1] <- 20; gain[1] <-  2   # high-leverage point: far-right x, low y
sessions[2] <-  5; gain[2] <- 40   # vertical outlier:     ordinary x, huge y

# Ordinary least squares: minimizes sum of SQUARED residuals
ols <- lm(gain ~ sessions)
coef(ols)["sessions"]          # OLS slope ~= 0.6   (leverage point flattens the line)
# (the same clean data WITHOUT the two points gives clean OLS slope ~= 1.5)

# Theil-Sen: MEDIAN of all pairwise slopes  ->  ~= 1.45
theil_sen <- median(outer(gain, gain, "-")[lower.tri(diag(40))] /
                    outer(sessions, sessions, "-")[lower.tri(diag(40))])
# theil_sen ~= 1.45

# Huber M-estimation: quadratic-in-the-middle, linear-in-the-tails loss (downweights)
huber <- MASS::rlm(gain ~ sessions)        # method = "M", Huber psi
coef(huber)["sessions"]        # Huber slope ~= 1.4

# Least absolute deviations (L1): minimizes sum of |residuals|
l1 <- quantreg::rq(gain ~ sessions, tau = 0.5)
coef(l1)["sessions"]           # L1 slope ~= 1.5

# slopes:  OLS = 0.6   Theil-Sen = 1.45   Huber = 1.4   L1 = 1.5   (clean OLS = 1.5)

Interpretation. OLS reports a slope of about \(0.6\) — under half the clean \(1.5\) — because the high-leverage point at \(\text{sessions} = 20\) sits low (\(\text{gain} = 2\)) on a long lever arm and the squared penalty pays OLS to flatten the line toward it; the vertical outlier at \(\text{sessions} = 5\), \(\text{gain} = 40\) adds spread but moves the slope less because it sits near the middle of \(x\). The three robust fits each recover the clean structure — Theil–Sen \(\approx 1.45\) (median of pairwise slopes), Huber \(\approx 1.4\) (large residuals downweighted), L1 \(\approx 1.5\) (absolute, not squared, penalty) — because none of them lets two points out of forty govern the answer. Name which points move which fit: the leverage point flattens OLS; the robust fits hold near \(1.5\). The claim the comparison supports is: attendance plausibly buys about \(1.45\)–\(1.5\) gain points per session, and the OLS \(0.6\) is an artifact of contamination. The claim it does not support is that the two odd points are definitely errors — robustness resists them but does not adjudicate them; that is an investigation, not a computation.

Worked example — a calibration line with one mis-recorded standard (transfer, new context)

What is assumed. A chemistry lab builds a calibration line: it runs a sequence of standards of known concentration \(x\) and records the instrument’s signal \(y\), expecting a clean linear response \(y \approx \beta_0 + \beta_1 x\) across the working range. You assume the response is linear and that most standards were recorded correctly, but one standard at a high concentration (far right in \(x\)) had its signal mis-transcribed — a low number where a high one belonged. These numbers are illustrative and distinct from Dataset D, but the structure is the same: a single high-leverage point with a wrong \(y\).

Computation. Fit the calibration line two ways. Ordinary least squares minimizes \(\sum r_i^2\), so the mis-recorded high-concentration standard — sitting at the end of a long lever arm — pulls the right end of the line down and flattens the calibration slope, exactly as the leverage point did in Dataset D. A robust fit (Theil–Sen on the pairwise slopes, or an L1 / Huber fit) is governed by the many correctly-recorded standards, so its slope tracks the true instrument response and the one bad standard lands harmlessly in the tail of the pairwise slopes. The shapes of the two answers mirror the recurring slice: OLS captured by one point, the robust fit holding near the true slope.

Interpretation. The flattened OLS calibration slope would make the instrument read systematically low at high concentrations — a real measurement error propagated into every future sample converted with that line. The robust slope protects the calibration by refusing to let one mis-recorded standard set it. Note what changed and what did not: the context is an instrument, not a wellness program, and the numbers differ, but the method move is identical — a high-leverage point with a wrong \(y\) breaks least squares, and a fit that medians or downweights instead of squaring holds. Assumption-ladder move: the robust calibration assumes a linear response and a contaminated minority; it downweights / medians out the bad standard; it protects against that single transcription error; it cannot prove the instrument is linear across the whole range — that needs more standards, not a more clever loss function.

A common mistake

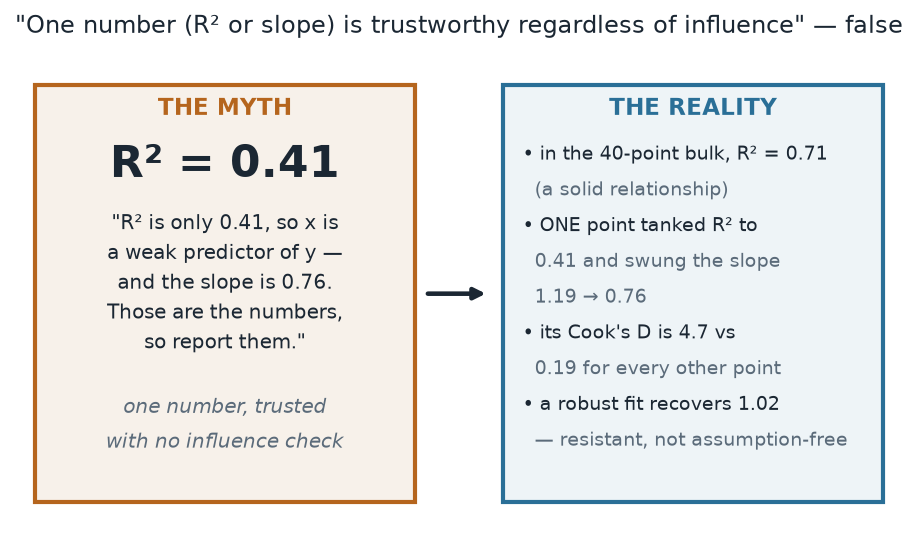

The week’s central trap — Risk 10, Risk 11, Risk 12 — is trusting least squares under contamination, in three braided forms: reporting the OLS line without checking whether a few points captured it; treating a small standard error or tight \(R^2\) around that line as if it certified the slope; and, worst, silently deleting the points that look inconvenient and refitting as though nothing happened.

The trap sounds like: “I fit the line, the slope is \(0.6\), attendance barely helps.” But the slope is \(0.6\) only because the leverage point at \(\text{sessions} = 20\) flattened it; the structure the other points follow says \(1.5\). OLS does not warn you it has been captured — it reports the number the squared penalty produced, with a perfectly ordinary-looking standard error, and a confident wrong answer is the most dangerous kind. The fix is not faith in OLS; it is to fit a robust line alongside it and look. When OLS says \(0.6\) and Theil–Sen says \(1.45\), Huber says \(1.4\), and L1 says \(1.5\), the disagreement is the diagnostic: it tells you a small number of points are driving the OLS fit, and it tells you roughly where the structure actually lies.

The deletion version is subtler and more tempting. Spotting the \(\text{gain} = 40\) outlier and the low leverage point, you might just drop them and refit to a clean \(1.5\). Resist it (this is the Week 10 discipline carried forward): do not auto-delete. A point that breaks a fit might be a transcription error — or it might be a real, rare, informative responder, and deleting it both discards information and hides the contamination from your reader. The honest move is to report the comparison: name that two points out of forty drive the OLS slope, say which points move which fit, show OLS and a robust fit side by side, and investigate the odd points rather than disappearing them. A robust fit lets you do that without first deciding who lives and who dies in the dataset.

Low-stakes self-checks (ungraded)

These are for your own practice — ungraded, no submission.

In one sentence each, say what OLS minimizes, what L1 minimizes, and what Theil–Sen takes the median of. Which two of those care about a residual’s magnitude, and which cares only about ranks/medians?
On Dataset D, the contaminated OLS slope is about \(0.6\) while the clean OLS slope is about \(1.5\). Which of the two contaminating points — the high-leverage one at \(\text{sessions} = 20\) or the vertical outlier at \(\text{sessions} = 5\) — does more to flatten the slope, and why does leverage matter here?
A classmate fits Huber M-estimation, gets a slope of \(\approx 1.4\), and concludes “robust methods prove the two odd points are data-entry errors.” Identify what is wrong with that conclusion.
Explain, in your own words, why squaring residuals (OLS) lets one far point dominate while taking absolute values (L1) does not.
Suppose a single high-leverage point has a small residual to the line it is distorting. Which robust fit might still be fooled by it, and why does comparing several robust fits help?

Reading and source pointer

This week is grounded in the instructor notes (the primary course materials) for robust regression and the OLS-versus-robust comparison, with ModernDive (Ismay, Kim & Valdivia) on regression in R supporting the fitting workflow you will use in the companion lab, and Nonparametric Statistical Methods (Hollander, Wolfe & Chicken) named only as an optional advanced reference for the robust-fit vocabulary (Theil–Sen, M-estimation). The Hollander–Wolfe–Chicken text is a restricted commercial reference, cited and named only — no prose, examples, tables, figures, or exercises are reproduced from it or from any source. These notes are the course’s own synthesis, grounded in but not copied from the sources.

Evidence and verification status

verified: false. The method logic on this page is course-authored, but every numeric value here is drafted, synthetic, and not independently checked. The page’s load-bearing numbers are the Dataset D structure (\(\text{gain} \approx 2 + 1.5\cdot\text{sessions}\), residual SD \(\approx 4\)), the two contaminating points (high-leverage \(\text{sessions} = 20\), \(\text{gain} = 2\); vertical outlier \(\text{sessions} = 5\), \(\text{gain} = 40\)), and the five slopes — contaminated OLS \(\approx 0.6\), clean OLS \(\approx 1.5\), Theil–Sen \(\approx 1.45\), Huber \(\approx 1.4\), L1 \(\approx 1.5\). All data are synthetic with set.seed(45203). These worked numbers are provisional and not independently verified — treat them as targets to reproduce, not as confirmed reference values.

Public vs. graded

These notes, the examples, and the practice here are public and ungraded — study material only. No graded prompts, answer keys, rubrics, point values, or due dates appear on this site. Graded method checkpoints, weekly quizzes, homework and method reports, resampling and robustness labs, the midterm, the applied robust-methods project, and the final exam live in Blackboard (the LMS), which is authoritative for due dates, submissions, and grades. If this page and Blackboard ever disagree, follow Blackboard.

Looking ahead

Next week we put the parametric and the assumption-light conclusions side by side and read the disagreement honestly. On Dataset W the \(t\)-test (\(p \approx 0.08\)) is weakened by the tail-inflated SD while the permutation test (\(p \approx 0.02\)) and the rank-sum test (\(p \approx 0.01\)) detect the shift; on Dataset D the OLS slope \(0.6\) stands beside the robust \(1.45\). The lesson previews itself: method choice follows the question and the shape of the data, not a contest over which test is “more correct” — and where the data are clean and symmetric, the methods would agree.
