Week 8 — Two-sample rank methods

What the rank-sum test claims, and why it is a shift, not a difference in means

The week question

You have two groups of numbers — Express waits and Standard waits — and you want to know whether one group runs systematically lower than the other. The two-sample \(t\)-test would answer by comparing the two means, but you already know from earlier weeks that the wait-time means are dragged around by a couple of very long Standard waits. So this week’s question is narrow and specific: when you pool the two groups, rank everything, and compare the groups by their ranks, what exactly are you measuring — and why is the honest answer a shift (a probability that one group runs lower than the other), and not a difference in means? The Wilcoxon rank-sum test, equivalently the Mann–Whitney \(U\), is the method that answers it, and reading its output correctly is the entire skill this week.

Why this matters

The two-sample comparison is the most common question in applied statistics: does this group differ from that one? When the data are roughly normal and the spreads are similar, the \(t\)-test is a fine tool and its difference-in-means summary is exactly what you want. But real service-wait data — like Dataset W — are right-skewed with a few extreme values, and in that setting the mean is not a stable summary and the \(t\)-test’s standard error gets inflated by the long tail. A method built on ranks sidesteps the problem: it never uses the raw size of the longest wait, only its position in the pooled ordering, so one monstrous wait counts as “the largest,” not as “88, which is enormous.” That is what makes the rank-sum resistant to the tail that breaks the mean.

But resistance comes with a relabeling of the question, and that relabeling is where most people go wrong. The rank-sum does not test “is the Express mean lower than the Standard mean.” It tests a stochastic-shift hypothesis — roughly, “is an Express wait usually shorter than a Standard wait” — and its most honest effect summary is a probability, \(P(\text{Express} < \text{Standard})\), called the probability of superiority or the probabilistic index. Report a rank-sum result as a difference in means and you have reported a number the test never estimated. This week makes the rank-sum’s actual claim precise, so that the small \(p\)-value you get is attached to the right sentence. It is the two-sample companion to last week’s paired and one-sample rank methods, and the bridge into the ordinal outcomes of Week 9.

Learning goals

By the end of this week you should be able to:

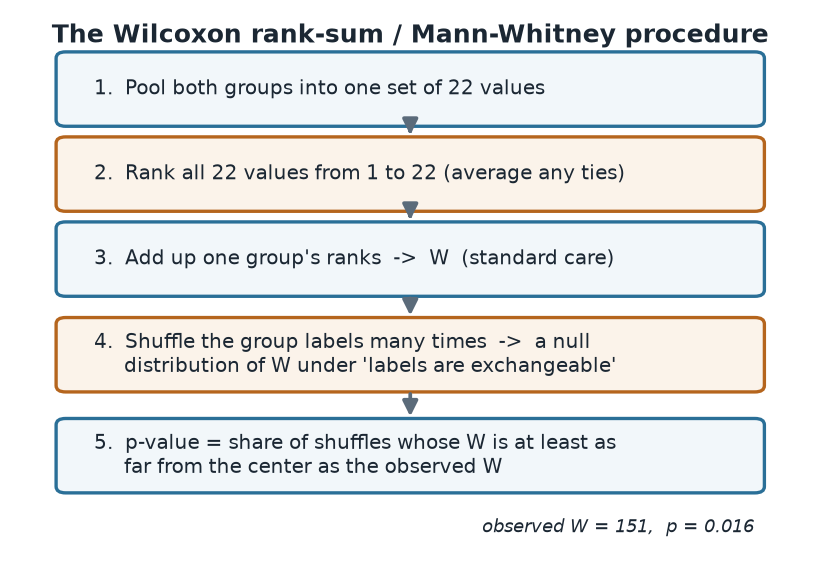

Describe the pool-and-rank procedure: combine both groups, rank all observations from smallest to largest, and use mid-ranks for ties.
Compute (conceptually) the Wilcoxon rank-sum statistic \(W\) — the sum of ranks in one group — and its equivalent Mann–Whitney \(U\), and explain why the two are the same test.
Convert \(U\) into the probabilistic index \(\hat P(X < Y)\) — the probability of superiority — and read it as the test’s natural effect size.
State, in one sentence, what the rank-sum’s null and alternative actually say (a stochastic shift, often phrased as a location shift), and why that is not a difference in means.
Name the assumption-ladder move for the rank-sum: what it assumes (exchangeability under the null; for the shift reading, similar group shapes), what it ranks, what that protects against (a heavy upper tail), and what it still cannot prove (a clean difference in means; a mechanism).

Core vocabulary

Pooled ranking — combine both groups into one list of \(N = n_T + n_C\) values and assign each the rank \(R_i\) of its position in the sorted pool, \(1\) for the smallest up to \(N\) for the largest.
Mid-ranks (ties) — when several observations are equal, give each the average of the ranks they would occupy; e.g. two values tied for positions \(4\) and \(5\) each get the mid-rank \(4.5\).
Wilcoxon rank-sum statistic (\(W\)) — the sum of the ranks belonging to one chosen group (here the Express group), \(W = \sum_{i \in \text{Express}} R_i\).
Mann–Whitney \(U\) — the count of (Express, Standard) pairs in which the Express value is the smaller; \(U\) and \(W\) are linked by a fixed arithmetic shift, so they are the same test in two costumes.
Probabilistic index / probability of superiority (\(\hat P(X<Y)\)) — the estimated probability that a randomly chosen Express wait is shorter than a randomly chosen Standard wait, \(\hat P = U / (n_T n_C)\).

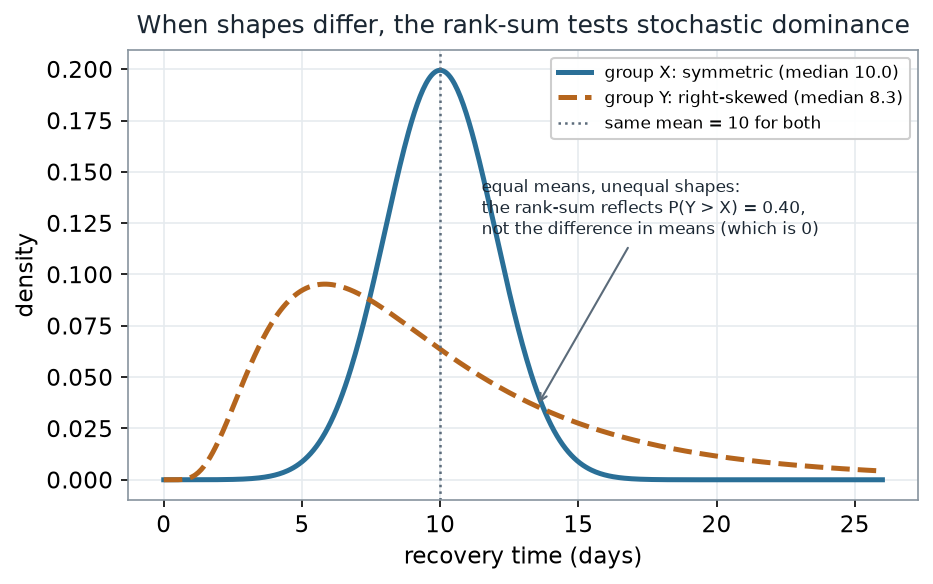

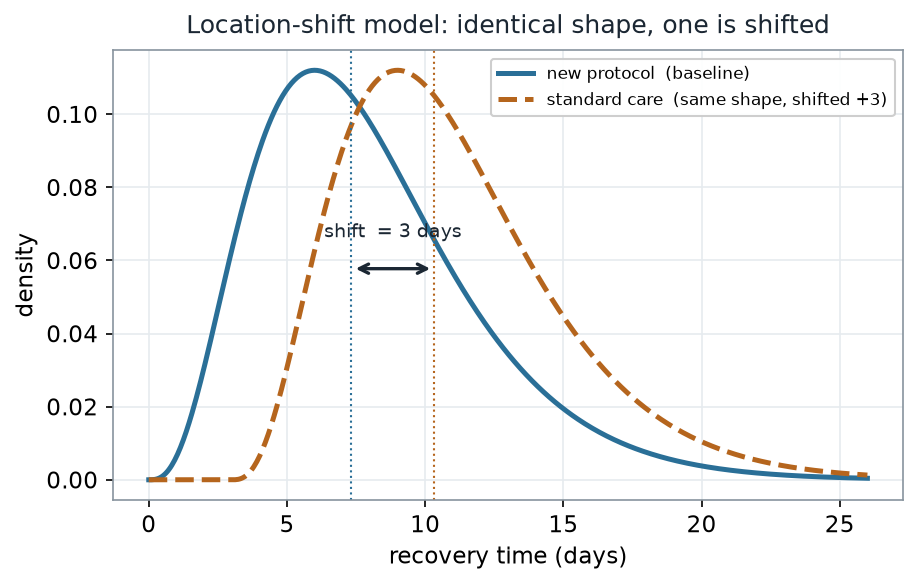

Stochastic shift (location shift) — the alternative the rank-sum is built to detect: one group’s whole distribution is pushed toward lower (or higher) values than the other’s.
Exchangeability (under the null) — the assumption that, if the two groups truly have the same distribution, the group labels are arbitrary tags that could be reshuffled with no effect.

Concept development

Pool, rank, and use mid-ranks for ties

The rank-sum throws away the raw values and keeps only their ordering. You take the \(n_T = 25\) Express waits and the \(n_C = 25\) Standard waits, pour them into one pool of \(N = 50\), sort that pool from smallest to largest, and give every observation its rank — \(1\) to the shortest wait, \(50\) to the longest. Then you look at which group the small ranks landed in. If Express waits are genuinely shorter, the Express observations should collect a disproportionate share of the low ranks, and the Standard observations should hold the high ones.

The single most important consequence of ranking is what it does to the long Standard waits near \(64\) and \(88\) minutes. To the \(t\)-test those are huge numbers that inflate the variance and shove the Standard mean upward. To the rank-sum they are simply rank \(49\) and rank \(50\) — the two largest positions, nothing more. Replacing \(88\) with \(880\) would not move the rank-sum at all, because \(880\) is still just “the largest.” That is the precise sense in which ranks are resistant: an extreme value can occupy at most the top rank, so it can contribute only a bounded amount, no matter how extreme it is.

Ties need a rule. When two or more pooled values are equal, you do not break the tie arbitrarily; you give each tied observation the mid-rank, the average of the rank positions they jointly occupy. If three waits all equal \(14\) minutes and would occupy positions \(12\), \(13\), \(14\) in the sorted pool, each gets the mid-rank \((12 + 13 + 14)/3 = 13\). Mid-ranks keep the total of all ranks fixed at \(1 + 2 + \dots + N = N(N+1)/2\), which is what makes the test’s bookkeeping balance. Wait times recorded to the nearest minute will have ties, so mid-ranks are not a footnote here — they are part of the procedure.

The assumption-ladder move so far: you assume only that, under the null, the two groups are exchangeable (same distribution, so labels are arbitrary); you rank the pooled data; this protects against a heavy upper tail that would wreck a mean-based test; and it cannot prove anything about the actual minutes — by design you have discarded them.

From the rank-sum \(W\) to Mann–Whitney \(U\) — one test, two faces

Once every pooled wait has a rank, the Wilcoxon rank-sum statistic is just the sum of the ranks that fell to one group. Choose the Express group:

\[ W = \sum_{i \in \text{Express}} R_i . \]

If Express waits are short, they hold the low ranks and \(W\) is small; if the two groups were identical, \(W\) would sit near its null average. Under the null, the Express ranks are a random subset of size \(n_T\) drawn from \(\{1, 2, \dots, N\}\), so the expected rank-sum is

\[ E[W] = \frac{n_T (N + 1)}{2} = \frac{25 \cdot 51}{2} = 637.5 . \]

The observed Express rank-sum lands well below \(637.5\), because the Express waits gathered the low ranks — that “below average” position is the whole signal.

The Mann–Whitney \(U\) tells the same story by counting comparisons instead of summing ranks. For every one of the \(n_T n_C = 25 \times 25 = 625\) possible (Express, Standard) pairs, ask: is the Express wait the shorter of the two? \(U\) is the number of pairs for which the answer is yes (ties count as half). The two statistics are connected by a fixed formula,

\[ U = W - \frac{n_T(n_T + 1)}{2}, \]

so reporting \(W\) or reporting \(U\) is reporting the same test — there is no second method hiding here. The \(U\) form is the more useful one for interpretation, because dividing it by the number of pairs turns it directly into a probability, which is the next subsection.

The assumption-ladder move: you assume exchangeability under the null; you rank (and equivalently count pairwise comparisons); this protects against the tail; it cannot prove that the groups differ in mean — \(W\) and \(U\) are statements about ordering, not about averages.

The honest effect size: a probability, not a mean difference

Here is the payoff and the trap. Divide \(U\) by the number of pairs and you get the probabilistic index, the probability of superiority:

\[ \hat P(\text{Express} < \text{Standard}) = \frac{U}{n_T \, n_C} . \]

For Dataset W this works out to \(\hat P(\text{Express} < \text{Standard}) \approx 0.72\). Read that sentence literally: if you pick one Express wait and one Standard wait at random, the Express wait is the shorter one about \(72\%\) of the time. A value of \(0.5\) would mean the two are interchangeable — a coin flip which is shorter — and \(0.72\) is a meaningful tilt toward Express being faster. This is the rank-sum’s natural effect size: it is exactly what the test statistic estimates, it lives on a \(0\)-to-\(1\) probability scale everyone can read, and it never once mentions the word “mean.”

The accompanying tail probability for Dataset W is \(p \approx 0.01\). Read it the way you read every permutation-style \(p\)-value in this course: if the two workflows produced identically-distributed waits, a rank separation at least this strong would arise about \(1\%\) of the time by the luck of which waits landed in which arm. (You can build that null distribution by exactly the Week 3 machinery — shuffle the \(50\) group labels, recompute the rank-sum each time — which is why the rank-sum is a permutation test on ranks, not a formula you must take on faith.) The small \(p\) says the shift is unlikely to be label-luck; the \(\hat P \approx 0.72\) says how big the shift is, on a scale that means something.

Now the discipline. The right summary sentence is “an Express wait is usually shorter than a Standard wait — about \(72\%\) of head-to-head comparisons favor Express (\(p \approx 0.01\)).” The wrong summary is “Express waits are \(X\) minutes shorter on average,” because the rank-sum never estimated a mean difference and is in fact specifically engineered to ignore the magnitudes that a mean would use. The assumption-ladder move: you assume exchangeability under the null, and — to upgrade \(\hat P\) into a clean location-shift story — that the two groups have similar shapes; you rank; this protects against the inflated mean and standard error caused by the long Standard waits; and it cannot prove a difference in means, nor any causal mechanism, nor (without the equal-shape assumption) that the difference is purely a location shift rather than, say, a difference in spread.

Worked examples

Worked example — Express vs Standard service waits (recurring slice, Dataset W)

What is assumed. Dataset W holds \(n_T = 25\) Express waits and \(n_C = 25\) Standard waits, in minutes, right-skewed, with two long Standard waits near \(64\) and \(88\). Data are synthetic; seed set. For the \(p\)-value we assume the two groups are exchangeable under the null (identical distributions ⇒ the group labels are arbitrary). To read \(\hat P \approx 0.72\) specifically as a location shift we assume the two distributions have roughly the same shape, differing mainly by a horizontal slide. We do not assume normality, and we do not assume equal variances in the \(t\)-test sense.

Computation. Pool the \(50\) waits, rank them (mid-ranks for ties), sum the Express ranks to get \(W\), convert to \(U\), and divide by \(n_T n_C = 625\) to get the probability of superiority. The static R below is shown as teaching code and is not executed here.

set.seed(45203)

# Synthetic Dataset W: 25 Express + 25 Standard service waits (minutes), right-skewed.
# Drawn here only so the static slice is concrete; the locked summaries below are authoritative.
express  <- round(rlnorm(25, meanlog = 2.4, sdlog = 0.5))          # n_T = 25, shorter, less skewed
standard <- round(c(rlnorm(23, meanlog = 2.8, sdlog = 0.5), 64, 88))  # n_C = 25, two long tails

pool   <- c(express, standard)                 # N = 50 pooled waits
labels <- c(rep("Express", 25), rep("Standard", 25))
ranks  <- rank(pool, ties.method = "average")  # pooled ranks, MID-RANKS for ties

W <- sum(ranks[labels == "Express"])           # Wilcoxon rank-sum (Express ranks)
# E[W] under the null = n_T (N + 1) / 2 = 25 * 51 / 2 = 637.5 ; observed W sits well below this

U <- W - 25 * (25 + 1) / 2                      # Mann-Whitney U  =  W - n_T(n_T+1)/2
P_sup <- U / (25 * 25)                          # probability of superiority = U / (n_T n_C)
# P_sup = P(Express wait < Standard wait)  ~= 0.72   (an Express wait is usually shorter)

# wilcox.test() reports the SAME statistic and tail probability:
# wilcox.test(express, standard)$p.value   ~= 0.01   (two-sided)

# ---- key numbers (synthetic; verified: false) ----
# E[W] (null mean) = 637.5      observed W well below 637.5
# P(Express < Standard) ~= 0.72      p ~= 0.01

Interpretation. The probability of superiority is \(\hat P(\text{Express} < \text{Standard}) \approx 0.72\): pick one Express wait and one Standard wait at random and the Express wait is shorter about \(72\%\) of the time — a clear tilt toward Express being faster, well away from the \(0.5\) coin-flip of “no difference.” The tail probability \(p \approx 0.01\) says a rank separation this strong would arise only about once in a hundred reshuffles if the two workflows were really interchangeable, so the shift is unlikely to be an accident of which waits landed where. The claim the method supports is “Express waits run stochastically shorter than Standard waits — they win about \(72\%\) of head-to-head comparisons.” The claim it does not support is “Express is \(7\) minutes faster on average”: that is a mean difference, and the rank-sum deliberately ignored the minute-values (including the two long Standard waits, now merely ranks \(49\) and \(50\)) that a mean would have used. Assumption-ladder, stated plainly: assumed — exchangeability under the null, plus similar shapes for the location-shift reading; ranked — the pooled \(50\) waits; protects against — the long upper tail that inflates the mean and the \(t\) standard error; cannot prove — a clean difference in means, a difference in spread masquerading as a shift, or any cause.

Worked example — two small groups of pain scores (transfer, new context)

What is assumed. A physical-therapy clinic compares an active-stretching protocol against a heat-only protocol on next-day soreness, scored \(0\)–\(10\) (integers, so ties are guaranteed). Group A (stretching) has \(n_A = 6\) scores, Group B (heat) has \(n_B = 6\); \(N = 12\). These numbers are illustrative and distinct from Dataset W. We assume only exchangeability under the null; with scores this small and this tied, ranks are the natural scale, and a \(t\)-test on \(0\)–\(10\) integers with \(n = 6\) would be hard to justify. Synthetic; seed set.

Computation. Pool the \(12\) scores, rank with mid-ranks, sum Group A’s ranks for \(W_A\), convert to \(U\), and divide by \(n_A n_B = 36\).

set.seed(45203)

A <- c(2, 3, 3, 4, 5, 5)   # stretching, lower soreness  (n_A = 6)
B <- c(4, 5, 6, 6, 7, 8)   # heat only,  higher soreness  (n_B = 6)

pool   <- c(A, B)
labels <- c(rep("A", 6), rep("B", 6))
ranks  <- rank(pool, ties.method = "average")   # MID-RANKS for the many ties

W_A <- sum(ranks[labels == "A"])    # rank-sum for Group A (illustrative)
U_A <- W_A - 6 * (6 + 1) / 2        # Mann-Whitney U for A  =  W_A - n_A(n_A+1)/2
P_A_lower <- U_A / (6 * 6)          # P(A score < B score) = U_A / (n_A n_B), illustrative
# read: a randomly chosen stretching score is usually LOWER (less sore) than a heat score

Interpretation. The structure is identical to the wait-time example, only the context and the numbers change: pool, rank with mid-ranks, sum, convert to \(U\), divide by the number of pairs to get a probability of superiority you can state in one plain sentence — “a stretching patient is usually less sore than a heat patient in a head-to-head comparison.” With only six scores per group and lots of ties, this is exactly where a rank method earns its keep over a \(t\)-test: the ordinal-ish, tied, small-sample shape is hostile to means but friendly to ranks. The assumption-ladder move is the same — assumed exchangeability under the null; ranked the pooled \(12\) scores (mid-ranks for ties); protects against the unreliability of a mean on a tied \(0\)–\(10\) scale with tiny groups; cannot prove a mean difference or a cause. As before, the right effect summary is a probability, not “\(X\) points lower on average.”

A common mistake

The signature error this week is reading a rank-sum result as a difference in means — reporting \(\bar x_T - \bar x_C\) when the test estimated \(P(X < Y)\) (Risk 6, Risk 7). It usually sounds like one of these:

“The rank-sum was significant, so Express waits are about \(7\) minutes faster on average.”

“\(p = 0.01\), so the mean Express wait is lower than the mean Standard wait.”

Both sentences attach the rank-sum’s \(p\)-value to a mean difference the test never computed. The rank-sum/Mann–Whitney works on ranks; it has, by construction, discarded the raw minute-values — that discarding is precisely why it is resistant to the two long Standard waits. Having thrown those magnitudes away, it cannot then hand you back a statement measured in minutes. The number it does estimate is the probability of superiority, \(\hat P(\text{Express} < \text{Standard}) \approx 0.72\), and the honest report is a shift: “an Express wait is usually shorter than a Standard wait — Express wins about \(72\%\) of head-to-head comparisons, \(p \approx 0.01\).” If you specifically need a number in minutes, that is a different estimand and you must use a method built for it (a difference in medians with a bootstrap interval, as in Weeks 5–6 — for Dataset W that interval was about \((-10, -2)\) minutes), and you should say plainly which estimand you are reporting.

Two smaller traps travel with this one. First, forgetting mid-ranks for ties: wait times to the nearest minute will tie, and breaking ties arbitrarily (instead of averaging) quietly distorts \(W\) and the \(p\)-value. Second, promoting the probabilistic index into a pure “location shift” without checking shapes: \(\hat P \approx 0.72\) is always a valid statement about ordering, but calling it specifically a location shift assumes the two distributions have similar shapes; if Express and Standard differ mainly in spread rather than in location, the rank-sum can still flag a difference, and “shift” would then be the wrong word for it. Name what you are claiming — a probability of superiority always; a location shift only when the shapes support it.

Low-stakes self-checks (ungraded)

These are for your own practice — ungraded, no submission.

In one sentence, state what \(\hat P(\text{Express} < \text{Standard}) \approx 0.72\) means, using the words “randomly chosen” and “shorter.” Then say what value of \(\hat P\) would correspond to “no difference.”
A classmate writes: “The rank-sum gives \(p \approx 0.01\), so Express waits are about \(7\) minutes faster on average.” Identify exactly what is wrong, and rewrite the conclusion as an honest shift statement.
The two long Standard waits are near \(64\) and \(88\) minutes. What ranks do they occupy in the pooled list of \(50\)? If the \(88\) had instead been \(880\), how would \(W\), \(U\), and \(\hat P\) change — and why does that answer explain the word “resistant”?
Three pooled waits all equal \(14\) minutes and would occupy positions \(20\), \(21\), \(22\) in the sorted list. What mid-rank does each receive, and why does averaging keep the total of all ranks unchanged?
Using the locked link \(U = W - n_T(n_T + 1)/2\) and the null mean \(E[W] = n_T(N+1)/2 = 637.5\), explain in words why an observed Express rank-sum below \(637.5\) corresponds to a probability of superiority above \(0.5\).

Reading and source pointer

This week is grounded in the instructor notes (the primary course materials) for the pool-and-rank procedure and the shift interpretation, with ModernDive (Ismay, Kim & Valdivia) on comparing two groups for the rank-based two-sample workflow and the reproducible posture used in the labs. The classical rank-sum / Mann–Whitney vocabulary is calibrated against Hollander, Wolfe & Chicken, Nonparametric Statistical Methods — named and cited only as an optional advanced reference, with no prose, tables, examples, exercises, solutions, or notation reproduced. These notes are the course’s own synthesis, grounded in but not copied from the sources.

Evidence and verification status

verified: false. The method logic on this page is course-authored, but every numeric value here is drafted, synthetic, and not independently checked. The load-bearing numbers are: the probability of superiority \(\hat P(\text{Express} < \text{Standard}) \approx 0.72\) and the tail probability \(p \approx 0.01\) for Dataset W; the null rank-sum mean \(E[W] = n_T(N+1)/2 = 637.5\); the arithmetic links \(U = W - n_T(n_T+1)/2\) and \(\hat P = U/(n_T n_C)\) with \(n_T = n_C = 25\), \(N = 50\), \(n_T n_C = 625\); and the illustrative pain-score transfer values. All example data are synthetic with set.seed(45203). These worked numbers are provisional and not independently verified — treat them as targets to reproduce, not as confirmed reference values.

Public vs. graded

These notes, the examples, and the practice here are public and ungraded — study material only. No graded prompts, answer keys, rubrics, point values, or due dates appear on this site. Graded method checkpoints, weekly quizzes, homework and method reports, resampling and robustness labs, the midterm, the applied robust-methods project, and the final exam live in Blackboard (the LMS), which is authoritative for due dates, submissions, and grades. If this page and Blackboard ever disagree, follow Blackboard.

Looking ahead

Next week we keep the same pool-and-rank idea but apply it where the outcome is ordinal rather than continuous: program-satisfaction ratings on a \(1\)–\(5\) Likert scale (Dataset L). The Mann–Whitney on the ordinal scores again returns a probability of superiority (about \(0.66\) there, \(p \approx 0.01\)), and we contrast it with a plain \(\chi^2\) test of independence that throws away the ordering — the same lesson in a new costume: respect the scale, use the ranks, and report a shift, not an average of ordinal labels.
