Lab 1 — Permutation test from scratch

Build the null by shuffling labels, then read a p-value off its tail

Source basis. Original instructor-authored lab; data is synthetic (two groups of ten “engagement times” drawn from a fixed generator, seed 45221). Open texts are conceptual companions cited by section title only (map-don’t-mine); no prose, figures, examples, or exercises are reproduced. See Open readings & attribution. Ungraded — Blackboard is authoritative for graded work.

In this lab. Weeks 3–4 argued why a permutation test works: under the null the group label is exchangeable, so shuffling the labels manufactures the distribution of differences chance alone can produce. Here you build that test yourself — no t.test, no lookup table — on a fresh dataset. You will write the shuffle, count the tail, and then do something the weekly notes only gestured at: verify your simulated p-value against the exact answer, and watch how badly the estimate wobbles when you use too few shuffles.

Lab goals

By the end of this lab you should be able to:

  • Compute an observed test statistic (a difference in group means) and pool the data for relabeling.
  • Write a from-scratch permutation loop in R (sample + replicate) that shuffles the labels and recomputes the statistic, and read the resulting two-sided p-value as a tail proportion.
  • Verify a Monte-Carlo permutation p-value against the exact value from full enumeration, and state what the small +1 “add-one” convention buys you.
  • Judge how many shuffles is enough by watching the estimate stabilize — and explain why a few dozen shuffles is not.

The setting: an A/B test of two page layouts

A team runs an A/B test on an article page. Ten readers see Layout A, ten see Layout B, and the response is engagement time — how many seconds each reader spends on the page. Layout B looks stickier: its mean is 59.0 s against A’s 50.4 s, an observed gap of +8.6 s. With only ten readers a side, is that gap more than the luck of who-landed-where could produce? That is exactly the question a permutation test answers, and this lab builds the answer from nothing but the twenty numbers.

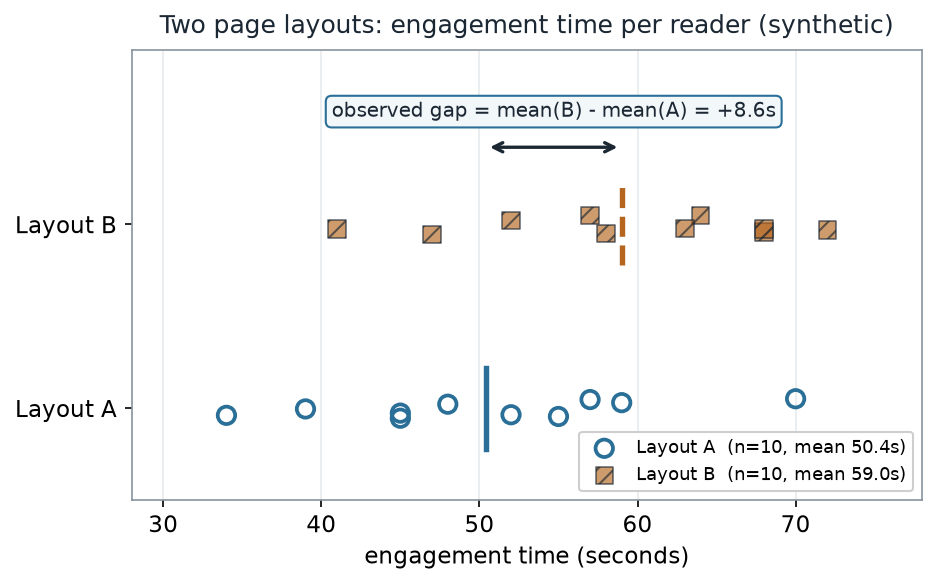

A two-row strip plot. The lower row (Layout A, open teal circles) shows ten engagement times scattered from about 34 to 70 seconds with a solid vertical mean marker near 50. The upper row (Layout B, hatched ochre squares) shows ten times from about 41 to 72 seconds with a dashed vertical mean marker near 59. A double-headed arrow between the two means is labeled: observed gap = mean(B) minus mean(A) = plus 8.6 seconds.

A two-row strip plot. The lower row (Layout A, open teal circles) shows ten engagement times scattered from about 34 to 70 seconds with a solid vertical mean marker near 50. The upper row (Layout B, hatched ochre squares) shows ten times from about 41 to 72 seconds with a dashed vertical mean marker near 59. A double-headed arrow between the two means is labeled: observed gap = mean(B) minus mean(A) = plus 8.6 seconds.
Figure 1: The two groups of engagement times (synthetic). Layout A (open circles) has mean 50.4 s; Layout B (hatched squares) has mean 59.0 s — an observed gap of +8.6 s.

What to notice. The two groups overlap heavily — plenty of Layout A readers stayed longer than plenty of Layout B readers. The whole case for “B is stickier” rests on a difference of group means of 8.6 seconds, sitting on top of spread that is several times larger. Eyeballing the strip plot, you should already feel unsure whether 8.6 s is a real effect or a lucky split. The permutation test turns that feeling into a number.

The two groups, as numbers (nonvisual equivalent).

Group Engagement times (sorted, seconds) n Mean
Layout A 34, 39, 45, 45, 48, 52, 55, 57, 59, 70 10 50.4
Layout B 41, 47, 52, 57, 58, 63, 64, 68, 68, 72 10 59.0
Observed difference mean(B) − mean(A) +8.6

Build the null: shuffle the labels, recompute the gap

The null hypothesis is the sharp claim that the layout label is irrelevant — every reader would have stayed the same number of seconds regardless of which page they saw. If that is true, the twenty times are just twenty times, and the particular split into “A” and “B” we observed is one of many equally likely splits. So we pool the twenty values, throw away the labels, and re-deal ten “A” tags and ten “B” tags at random. Each re-deal gives one difference in means the null could have produced. Do it four thousand times and you have traced the null distribution.

Here is the whole engine in R — notice there is no plotting in it; the picture is downstream:

# two groups of engagement times; H0: the layout label is exchangeable
set.seed(45221)
timeA <- c(34, 39, 45, 45, 48, 52, 55, 57, 59, 70)
timeB <- c(41, 47, 52, 57, 58, 63, 64, 68, 68, 72)

obs    <- mean(timeB) - mean(timeA)      # observed difference in means = 8.6
pooled <- c(timeA, timeB)                # 20 values, labels set aside
labels <- rep(c("A", "B"), each = 10)

one_diff <- function() {                 # ONE re-deal: shuffle the tags, recompute the gap
  lab <- sample(labels)                  # exchange labels across the WHOLE pool of 20
  mean(pooled[lab == "B"]) - mean(pooled[lab == "A"])
}

B      <- 4000
perm   <- replicate(B, one_diff())       # the permutation null distribution
pval   <- mean(abs(perm) >= abs(obs))    # two-sided p-value ~ 0.083
padd1  <- (1 + sum(abs(perm) >= abs(obs))) / (B + 1)   # the +1 ("add-one") convention

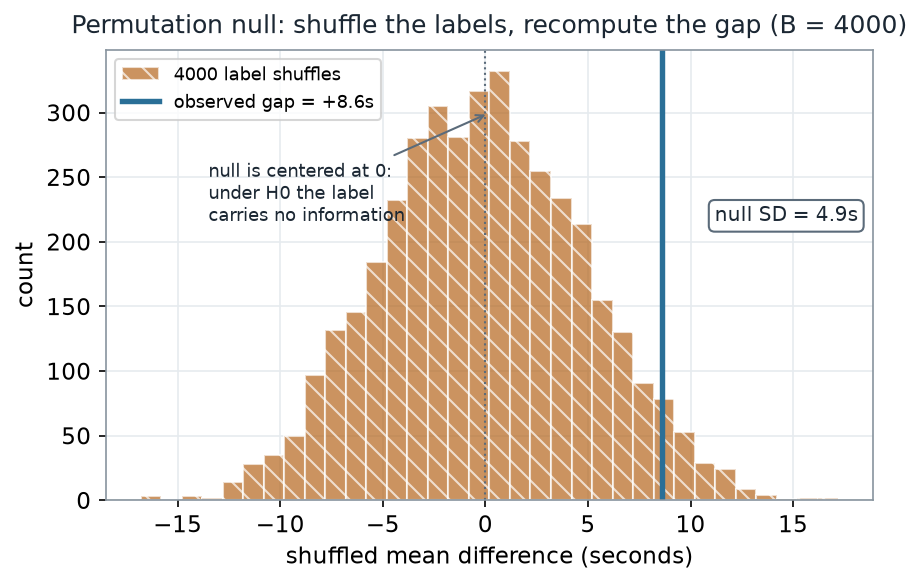

Histogram of four thousand shuffled mean differences, roughly bell-shaped and centered at zero, ranging from about minus seventeen to plus seventeen seconds. A dotted vertical line marks zero at the center; a solid teal vertical line marks the observed gap at plus 8.6 seconds, out in the right shoulder. A boxed label reads null SD equals 4.9 seconds.

Histogram of four thousand shuffled mean differences, roughly bell-shaped and centered at zero, ranging from about minus seventeen to plus seventeen seconds. A dotted vertical line marks zero at the center; a solid teal vertical line marks the observed gap at plus 8.6 seconds, out in the right shoulder. A boxed label reads null SD equals 4.9 seconds.
Figure 2: Permutation null distribution of the mean difference over 4,000 label shuffles. It is centered at 0 (under the null the label carries no information) with a spread of about 4.9 s; the observed gap +8.6 s sits well out in the right shoulder.

What to notice. The null is centered on zero, not on 8.6 — because when the label genuinely carries no information, a positive shuffled gap is exactly as likely as a negative one. Our observed +8.6 s is not off the chart, but it is out in the shoulder: only a thin slice of shuffles reach that far from zero. How thin that slice is, in both directions, is the p-value.

Permutation null read-out (nonvisual equivalent).

Quantity Value
Observed difference \(D_\text{obs}\) +8.6 s
Label shuffles (B) 4,000
Null center · null SD ≈ 0 · ≈ 4.9 s
Shuffles with \(|D^{*}| \ge 8.6\) 333

Worked example — read the p-value off the tail

Because “Layout B is stickier” and “the layouts differ” are different questions, we test two-sided: count every shuffle whose gap is at least as far from zero as ours in either direction, \(|D^{*}| \ge 8.6\). That count, divided by the number of shuffles, is the p-value — a counting statement, not a formula.

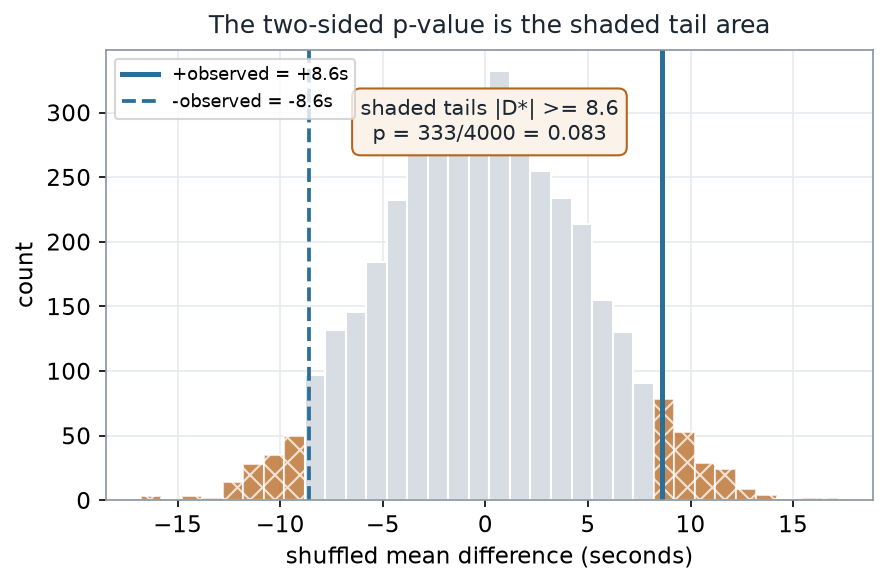

The same permutation null histogram in grey, with both outer tails beyond plus and minus 8.6 seconds shaded and cross-hatched in ochre. A solid teal line marks plus observed at 8.6 and a dashed teal line marks minus observed at minus 8.6. A boxed label reads: shaded tails, absolute difference at least 8.6, p equals 333 over 4000 equals 0.083.

The same permutation null histogram in grey, with both outer tails beyond plus and minus 8.6 seconds shaded and cross-hatched in ochre. A solid teal line marks plus observed at 8.6 and a dashed teal line marks minus observed at minus 8.6. A boxed label reads: shaded tails, absolute difference at least 8.6, p equals 333 over 4000 equals 0.083.
Figure 3: The two-sided permutation p-value is the shaded tail area: the share of shuffles with \(|D^{*}| \ge 8.6\). Here 333 of 4,000, so p ≈ 0.083.

What to notice. Both tails are shaded because the two-sided question does not privilege B over A in advance. The observed gap would arise from label-shuffling alone about 8% of the time — uncommon, but not rare, and above the conventional 0.05 line. That is an honest verdict for ten readers a side: an 8.6-second gap you can point to on the strip plot is still well within what pure re-dealing produces. The permutation test did not “fail to find an effect”; it reported, correctly, that this much data cannot settle the question.

Verify it: the exact p-value, and the +1 convention

Four thousand shuffles is a sample of the null, so pval carries a little Monte-Carlo error. With only \(\binom{20}{10} = 184{,}756\) ways to split twenty times into two groups of ten, we do not have to sample — we can enumerate every split and count exactly. Doing so gives 14,870 splits with \(|D^{*}| \ge 8.6\), an exact p-value of 0.080. Our 4,000-shuffle estimate (0.083) lands right on it, which is the whole point of Monte-Carlo permutation: sampling the relabelings is a convenience for when full enumeration is too large, not a different test.

P-value read-out (nonvisual equivalent).

Quantity Value
Two-sided count \(\#\{|D^{*}| \ge 8.6\}\) 333 / 4,000
Monte-Carlo p-value 0.083
With the +1 convention \((1+\#)/(B+1)\) 0.083
Exact p-value (all 184,756 splits) 0.080

The small +1 in padd1 is the add-one convention: it counts the observed data as one of its own relabelings, so the p-value can never come out exactly zero and you get a slightly conservative, honest floor. With 4,000 shuffles it barely moves the number (0.083 either way); with a handful of shuffles it matters a great deal — which is the next thing to see.

A common mistake

“A permutation p-value is exact — any number of shuffles gives the answer.” It is not. Each shuffle is a coin-flip sample of the null, so a p-value built from a few shuffles is itself a noisy random number. Run “50 shuffles” six times and you can get 0.06 one time and 0.10 the next — a spread wide enough to flip a naive “is it below 0.05?” verdict — even though the exact answer never moved. The Monte-Carlo p-value only becomes trustworthy as the number of shuffles grows; too few shuffles is noise dressed up as a decimal.

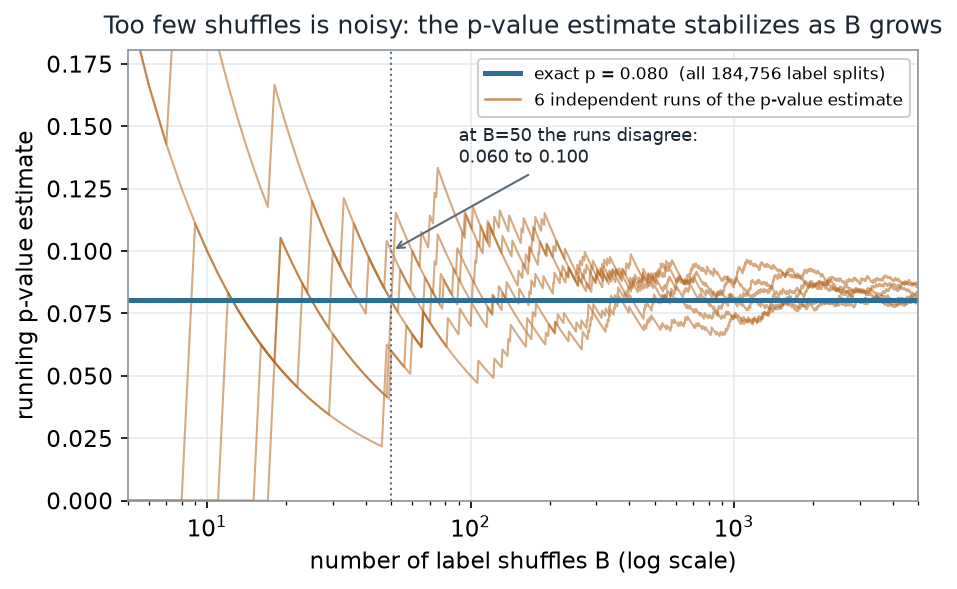

Six ochre trajectories of a running p-value estimate plotted against the number of shuffles B on a logarithmic x-axis from 5 to 5000. On the left the six curves swing wildly between about 0.00 and 0.17; a dotted vertical line at B equals 50 is annotated: at B equals 50 the runs disagree, 0.060 to 0.100. Moving right, the curves converge and by B in the thousands they all press against a solid teal horizontal line marking the exact p of 0.080.

Six ochre trajectories of a running p-value estimate plotted against the number of shuffles B on a logarithmic x-axis from 5 to 5000. On the left the six curves swing wildly between about 0.00 and 0.17; a dotted vertical line at B equals 50 is annotated: at B equals 50 the runs disagree, 0.060 to 0.100. Moving right, the curves converge and by B in the thousands they all press against a solid teal horizontal line marking the exact p of 0.080.
Figure 4: Six independent runs of the p-value estimate as the number of shuffles B grows (log scale). At small B the runs disagree wildly; by a few thousand shuffles they all settle onto the exact p = 0.080.

What to notice. Read the picture right-to-left. On the right, all six runs are pinned to the exact value — thousands of shuffles give an estimate you can trust to the third decimal. On the left, the same computation is chaos: at B = 50 the six runs range from 0.060 to 0.100, straddling the 0.05 line a careless reader might anchor on. Nothing about the data changed between the two ends of the plot — only the number of shuffles. When you build a permutation test, use thousands of shuffles, and if a decision hangs on the third decimal, enumerate.

Stabilization read-out (nonvisual equivalent).

Number of shuffles B Spread of the p-value estimate across 6 runs
50 0.060 to 0.100
5,000 0.080 to 0.087
Exact (all 184,756 splits) 0.080

Check your understanding (ungraded)

  1. Before any shuffling, what single number is the observed statistic here, and what is the pooled set the shuffle draws from? Say in one sentence what each shuffle keeps fixed and what it changes.
  2. The permutation null was centered at 0 even though Layout B’s mean was 8.6 s higher. Explain, in terms of exchangeability, why the center of the null does not depend on how far apart the groups look.
  3. The two-sided p-value came out 333/4,000 ≈ 0.083. Describe in one sentence exactly what the number 333 counts, and why both tails are included.
  4. A classmate runs the shuffle 50 times, gets p = 0.04, and reports “significant.” Using the stabilization figure, explain what is wrong with that claim and what you would tell them to do instead.
  5. The exact p-value was 0.080 and the 4,000-shuffle estimate was 0.083. Which one would you quote in a report, and why is the gap between them not evidence that either calculation is wrong?

Reading guide

  • Introduction to Modern Statistics (IMS) — Hypothesis testing with randomization — the closest conceptual companion to this lab’s shuffle-the-labels logic; read it for a second voice on why the re-deal builds the null, then check it against the figures above.
  • A ModernDive — Hypothesis testing — a hands-on companion that carries out permutation tests with the infer verbs; useful for seeing the same steps expressed as tidy code, after you have built the loop by hand (cited, not reproduced).
  • OpenIntro Statistics 4e — Inference for comparing two independent means (randomization) — reinforces the two-group setup and the two-sided tail reading you practiced here.

Accessibility notes

Mathematics is live text (\(D_\text{obs} = \bar{x}_B - \bar{x}_A\) and \(\binom{20}{10}\) render as MathML, not images). Every figure carries an alt line stating its message, an adjacent “what to notice” reading, and a data-summary table, so each point survives without the picture. Groups are distinguished by marker shape and hatch (Layout A open circles, Layout B hatched squares), the observed value by a solid line and its mirror by a dashed line, and the null tails by cross-hatch plus a boxed p-value label, never by color alone. A clean lint and a clean render are evidence, not a substitute for the human assistive-technology review.

Assessment (descriptive only)

This lab contributes learning evidence toward building a permutation null by relabeling, reading a two-sided p-value as a tail proportion, and verifying a simulated p-value against an exact one. That is the shape only; the actual graded lab prompt, weights, and due dates live in Blackboard.

Public vs. graded. This is a public, ungraded lab exemplar. The graded lab prompt, keys, rubrics, weights, and due dates live in Blackboard Ultra, which governs.

Looking ahead

You built a test that asks is this difference more than chance? The next lab keeps the resampling engine but changes the question: instead of shuffling labels to test a difference, you will resample one group with replacement to put an honest interval around an estimate — the bootstrap confidence interval of Weeks 5–6. Same habit of manufacturing a distribution from the data you have; a different thing to learn from it.
